Description
Brand - DODGE
Item Number - 043584 DODGE - SNP3064-1115
Category - USDAF SNP Adapter Assembly
Housing - 064L
Bearing Number - 23064K
SNP Number - SNP3064-1115
Approximate Weight (kg) - 65

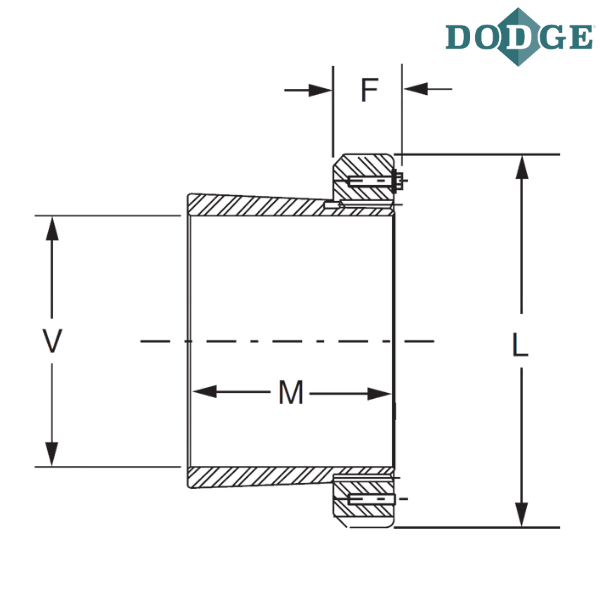

Shaft Size (V) inch - 11.9375
Outer Diameter (L) inch - 15.01
F (inch) - 2.03
M (inch) - 6.94
Notes :
SNP - Sleeve, Nut and Lockplate Assembly 048 (8-7/16”) and Larger Sizes
** Images are for representation purposes only
