Description
Brand - DODGE
Item Number - 043581 DODGE - SNP3060-1015
Category - USDAF SNP Adapter Assembly
Housing - 60
Bearing Number - 23060K
SNP Number - SNP3060-1015
Approximate Weight (kg) - 59

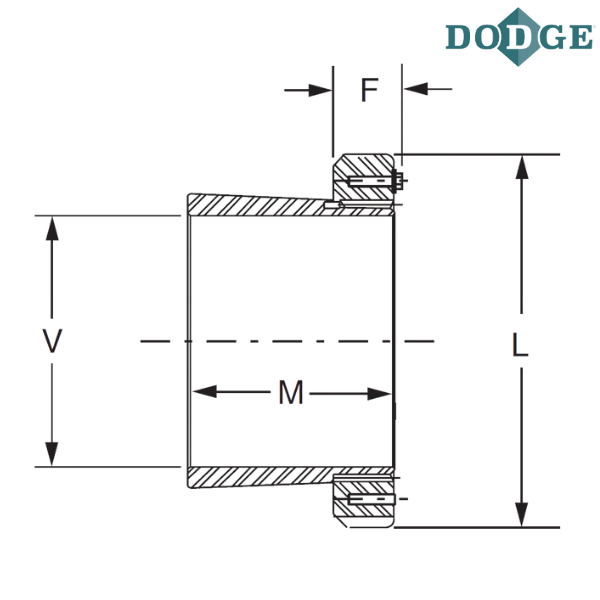

Shaft Size (V) inch - 10.9375
Outer Diameter (L) inch - 14.19
F (inch) - 1.94
M (inch) - 6.72
Notes :
SNP - Sleeve, Nut and Lockplate Assembly 048 (8-7/16”) and Larger Sizes
** Images are for representation purposes only
