Description
Brand - DODGE
Item Number - 043410 DODGE - 22232SS507
Category - USAF 22200 SPLIT-SPHER Roller Bearings
Shaft Diameter (inch) - 5.4375
Housing - 532
Description - 22232SS507
Approximate Weight (lbs) - 69.4

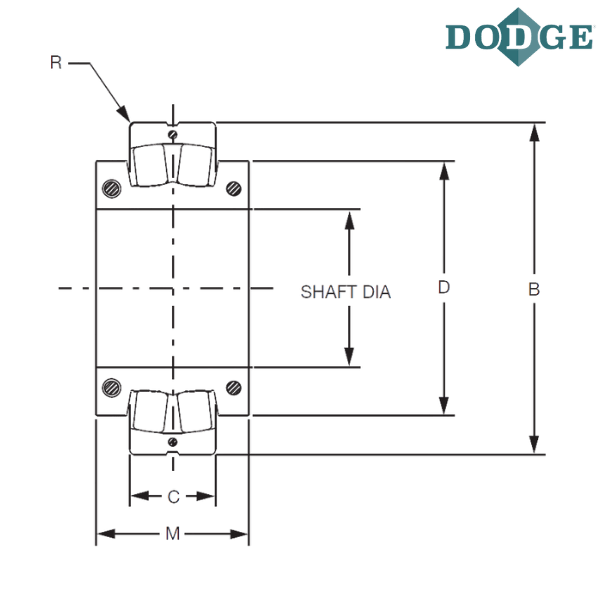

Outer Diameter (B) inch - 11.4173
Outer Diameter (B) mm - 290
C (inch) - 3.1496
C (mm) - 80
M (inch) - 4.8819
M (mm) - 124
D (inch) - 7.4016
R (inch) - 0.12
Notes :
SS - SPLIT-SPHER Pillow Block
507 - 5-7/16”
** Images are for representation purposes only
