Description
Brand - DODGE
Item Number - 043408 DODGE - 22228SS415
Category - USAF 22200 SPLIT-SPHER Roller Bearings
Shaft Diameter (inch) - 4.9375
Housing - 528
Description - 22228SS415
Approximate Weight (lbs) - 43.2

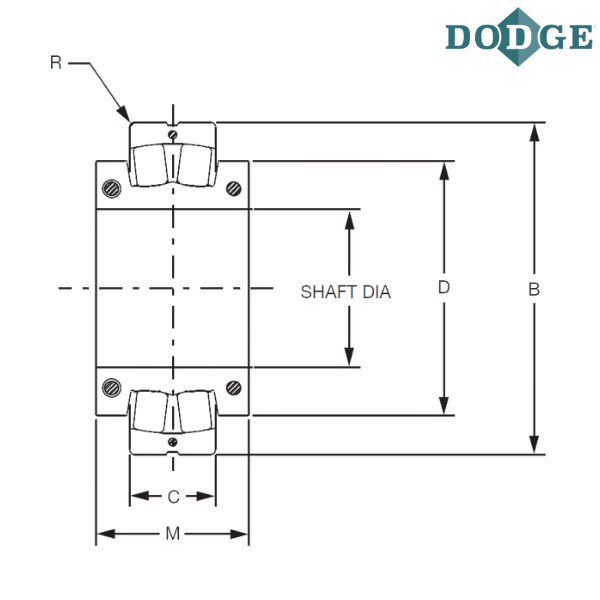

Outer Diameter (B) inch - 9.8425
Outer Diameter (B) mm - 250
C (inch) - 2.6772
C (mm) - 68
M (inch) - 4.3307
M (mm) - 110
D (inch) - 6.6929
R (inch) - 0.12
Notes :
SS - SPLIT-SPHER Pillow Block
415 - 4-15/16”
** Images are for representation purposes only
