Description
Brand - DODGE
Item Number - 043405 DODGE - 22222SS315
Category - USAF 22200 SPLIT-SPHER Roller Bearings
Shaft Diameter (inch) - 3.9375
Housing - 522
Description - 22222SS315
Approximate Weight (lbs) - 22

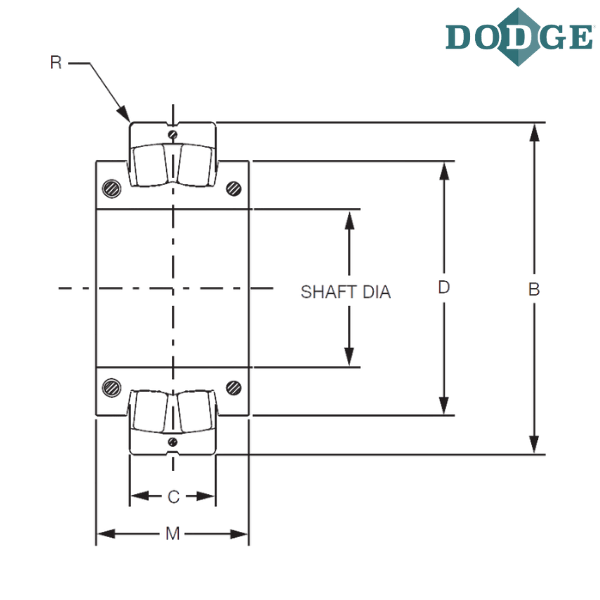

Outer Diameter (B) inch - 7.874
Outer Diameter (B) mm - 200
C (inch) - 2.0866
C (mm) - 53
M (inch) - 3.622
M (mm) - 92
D (inch) - 5.4331
R (inch) - 0.08
Notes :
SS - SPLIT-SPHER Pillow Block
315 - 3-15/16”
** Images are for representation purposes only
