Description
Brand - DODGE
Item Number - 043403 DODGE - 22218SS303
Category - USAF 22200 SPLIT-SPHER Roller Bearings
Shaft Diameter (inch) - 3.1875
Housing - 518
Description - 22218SS303
Approximate Weight (lbs) - 10.1

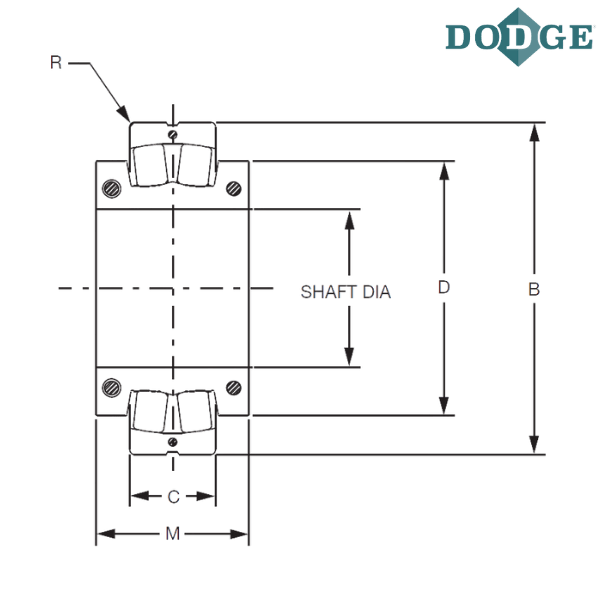

Outer Diameter (B) inch - 6.2992
Outer Diameter (B) mm - 160
C (inch) - 1.5748
C (mm) - 40
M (inch) - 2.7559
M (mm) - 70
D (inch) - 4.4094
R (inch) - 0.08
Notes :
SS - SPLIT-SPHER Pillow Block
303 - 3-3/16”
** Images are for representation purposes only
