043248 DODGE - P2B511-USAF-115TT

Brand - DODGE
Item Number - 043248 DODGE - P2B511-USAF-115TT
Category - USAF 500 Adapter Mount Pillow Block with TRIPLE-TECT Seal Assembly (500 Series Open End Housing)

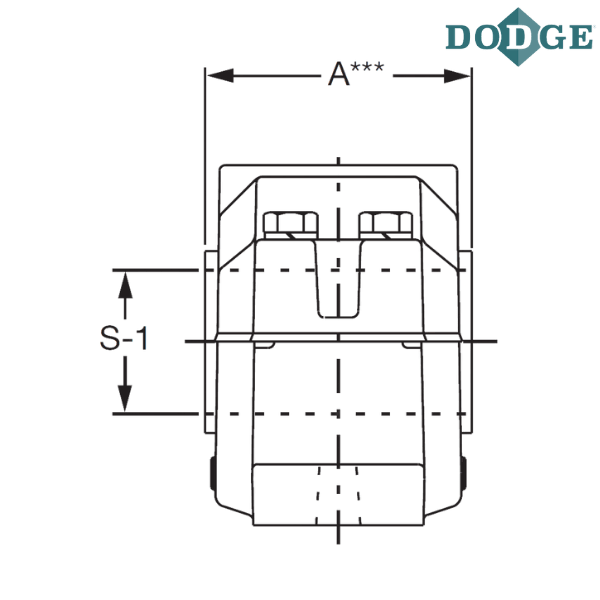

Shaft Diameter (S-1) inch - 1.9375
Description - P2B511-USAF-115TT
Housing Item Number - 043997 DODGE - H2S-511-USAF
Bearing Item Number - 422123 DODGE - BRG22211KC3
Dynamic Capacity (C) lbf - 31500
Maximum RPM (Grease) - 4500
SNW Item Number - 046352 DODGE - H311-SNW-115
TRIPLE-TECT Seal Item Number - 043540 DODGE - 12TT115
TTDN Seal Item Number - 039852 DODGE - 12TTDN115
LER Seal Item Number ** - 042512 DODGE - 12LER115
Auxiliary (Taconite) Seal Item Number - 041687 DODGE - 12AUX115
End Cover Item Number - 040702 DODGE - EC12

Notes :
P2B - 2 Bolt Base Pillow Block, Cast Iron, Both Ends Open
5XX - For Adapter Mounted 22200K Series Bearing
USAF - UNIFIED SAF Pillow Block (Inch Dimensions)
115 - 1 15/16”
TT - TRIPLE-TECT
H2S - 2 Bolt Base Pillow Block, Cast Iron, Both Ends Open
5XX - For Adapter Mounted 22200K Series Bearing
BRG - Roller Bearing
222 - 22200 Series
K - Tapered Adapter Sleeve Mounting. Otherwise Bearing Has Cylindrical Bore for Direct Mounting.
C3 - Bearing clearance

** LER seal is manufactured from Steel.

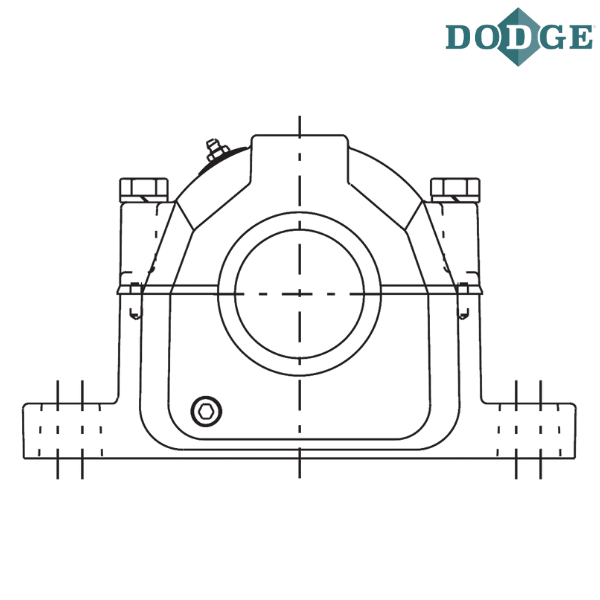

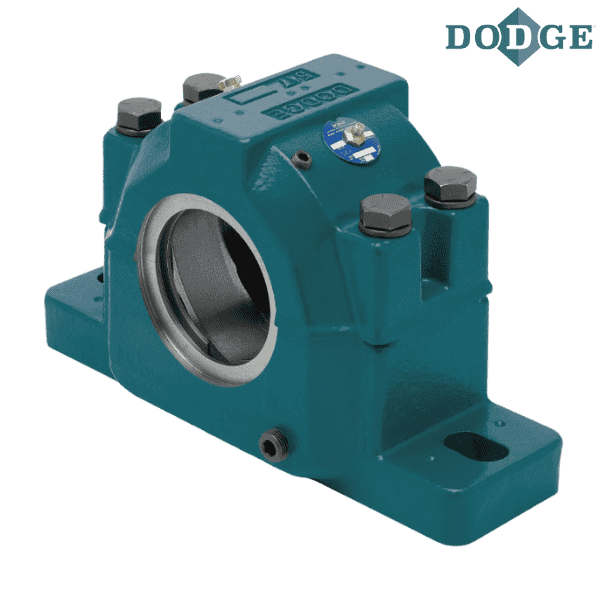

*** Images are for representation purposes only
