042580 DODGE - SP4B538-SAFS-700TT

Brand - DODGE
Item Number - 042580 DODGE - SP4B538-SAFS-700TT
Category - SAFS 4-Bolt Steel Housing Pillow Blocks (22200K/2300K Adapter Mount Bearing)
Description - SP4B538-SAFS-700TT
Shaft Size (inch) - 7
Housing Number - 538
Housing Item Number - 042472 DODGE - SH4S-538-SAFS
Approximate Weight (lbs) - 400

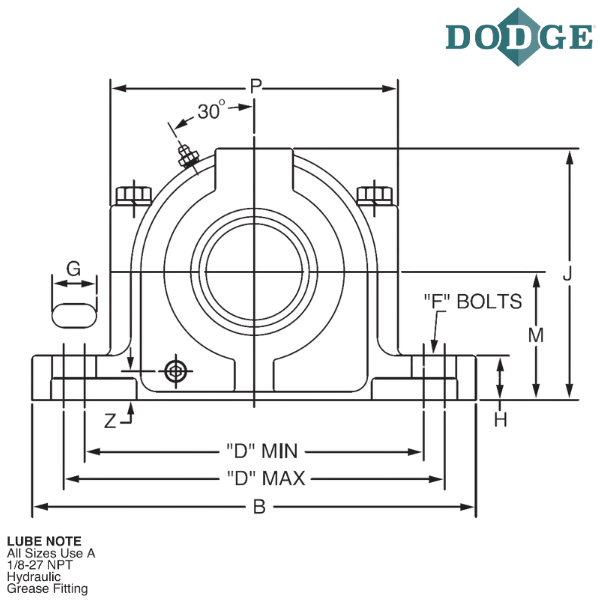

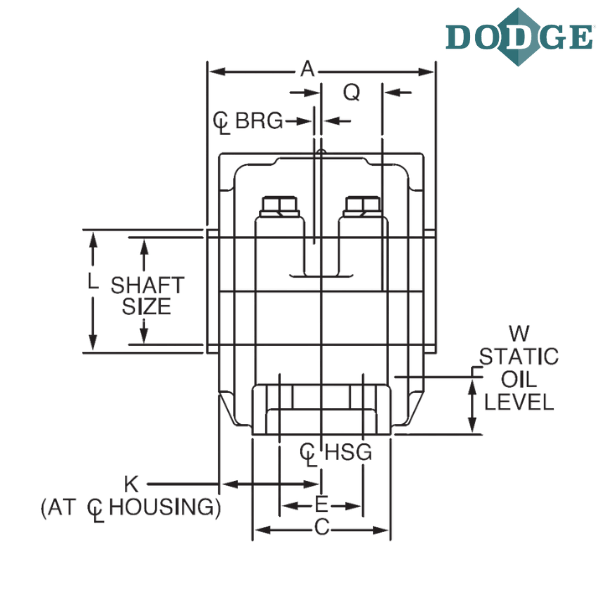

Dimension of A With Triple-Tect Seal (Std.) inch - 10.84
Dimension of A With LER/ER Seal (Optional) inch - 10.13
Dimension of A With Auxiliary Seal (Optional) inch - 11.16
Overall Length (B) inch - 28
C (inch) - 7.5
Bolt to Bolt Minimum Distance (D min) inch - 22.13
Bolt to Bolt Maximum Distance (D max) inch - 23.88
E (inch) - 4.5
F-Bolt Diameter (inch) - 1.25
G (inch) - 2.25
H (inch) - 3.13
Overall Height (J) inch - 16.13
K (inch) - 5.13
L (inch) ** - 7.38
Base to Center Height (M) inch - 7.88
P (inch) - 17.08
Q (inch) *** - 3.23
S (inch) **** - 0.19
W (inch) - 2.53
Z (inch) - 1.31

Notes :
* Complete Pillow Block Includes
1) housing with Spacers
2) Standard Spherical Bearing
3) SNW Assembly (SNP above 8”) and TRIPLE-TECT Seals unless otherwise noted.

** Based on TRIPLE-TECT seals.
*** Distance shaft should extend beyond housing centerline of pillow block is closed end style.
**** Non-expansion bearing offset from centerline. For Expansion Bearing S = 0.

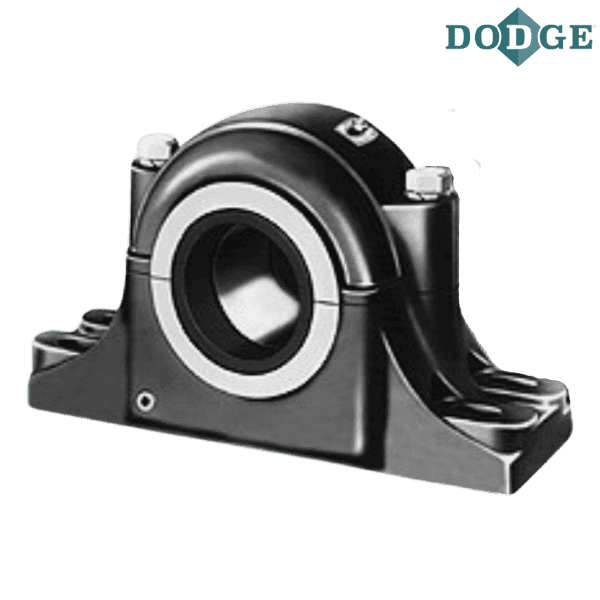

***** Images are for representation purposes only
