042570 DODGE - SP4B532-SAFS-507TT

Brand - DODGE
Item Number - 042570 DODGE - SP4B532-SAFS-507TT
Category - SAFS 4-Bolt Steel Housing Pillow Blocks (22200K/2300K Adapter Mount Bearing)
Description - SP4B532-SAFS-507TT
Shaft Size (inch) - 5.4375
Housing Number - 532
Housing Item Number - 042465 DODGE - SH4S-532-SAFS
Approximate Weight (lbs) - 245

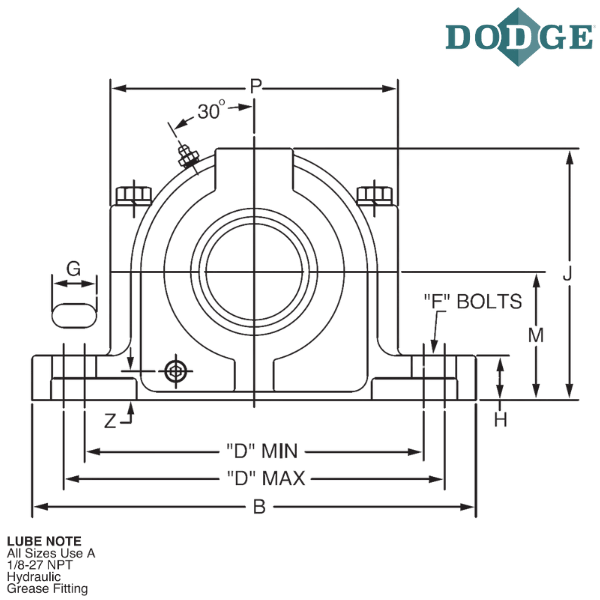

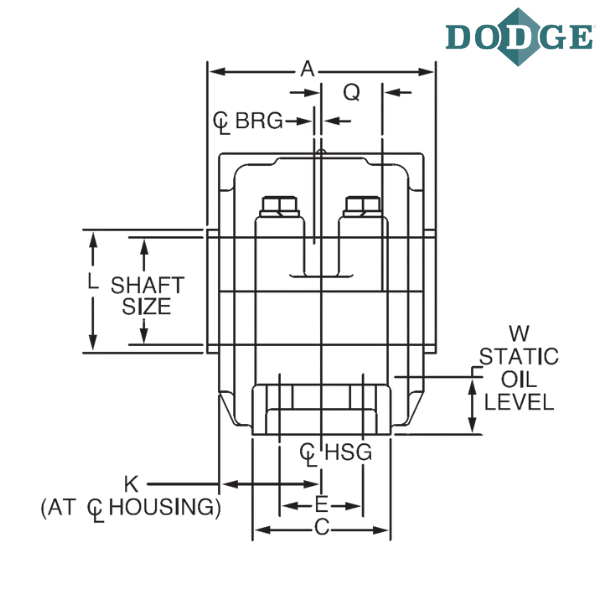

Dimension of A With Triple-Tect Seal (Std.) inch - 9.22
Dimension of A With LER/ER Seal (Optional) inch - 8.63
Dimension of A With Auxiliary Seal (Optional) inch - 10.45
Overall Length (B) inch - 22
C (inch) - 6.25
Bolt to Bolt Minimum Distance (D min) inch - 17.38
Bolt to Bolt Maximum Distance (D max) inch - 19.13
E (inch) - 3.75
F-Bolt Diameter (inch) - 1
G (inch) - 2
H (inch) - 2.75
Overall Height (J) inch - 13.69
K (inch) - 4.25
L (inch) ** - 5.88
Base to Center Height (M) inch - 6.69
P (inch) - 15.13
Q (inch) *** - 2.89
S (inch) **** - 0.19
W (inch) - 2.09
Z (inch) - 1.22

Notes :
* Complete Pillow Block Includes
1) housing with Spacers
2) Standard Spherical Bearing
3) SNW Assembly (SNP above 8”) and TRIPLE-TECT Seals unless otherwise noted.

** Based on TRIPLE-TECT seals.
*** Distance shaft should extend beyond housing centerline of pillow block is closed end style.
**** Non-expansion bearing offset from centerline. For Expansion Bearing S = 0.

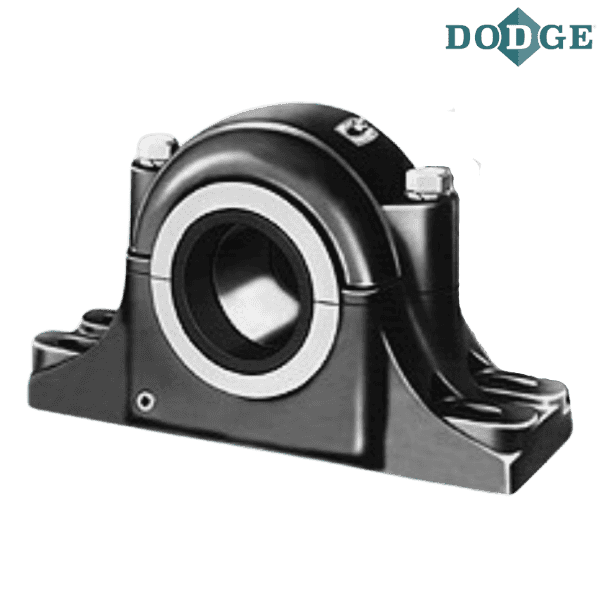

***** Images are for representation purposes only
