042421 DODGE - SP4B516-SAFS-212TT

Brand - DODGE
Item Number - 042421 DODGE - SP4B516-SAFS-212TT
Category - SAFS 4-Bolt Steel Housing Pillow Blocks (22200K/2300K Adapter Mount Bearing)
Description - SP4B516-SAFS-212TT
Shaft Size (inch) - 2.75
Housing Number - 516
Housing Item Number - 044232 DODGE - SH4S-516-SAFS
Approximate Weight (lbs) - 32

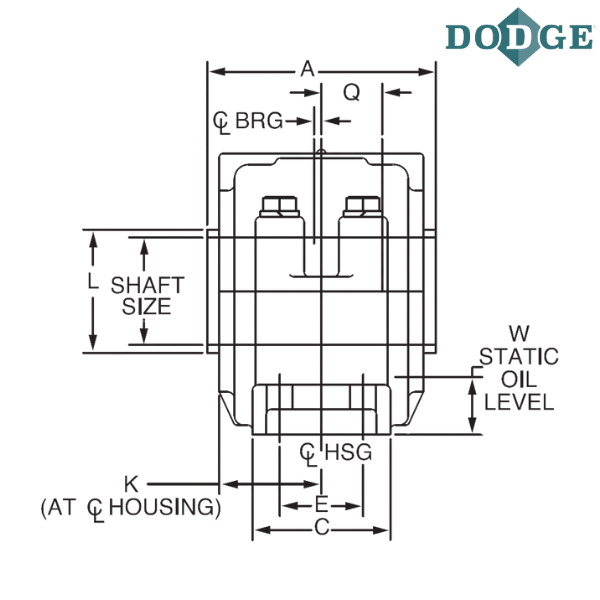

Dimension of A With Triple-Tect Seal (Std.) inch - 5.42
Dimension of A With LER/ER Seal (Optional) inch - 4.8
Dimension of A With Auxiliary Seal (Optional) inch - 7.63

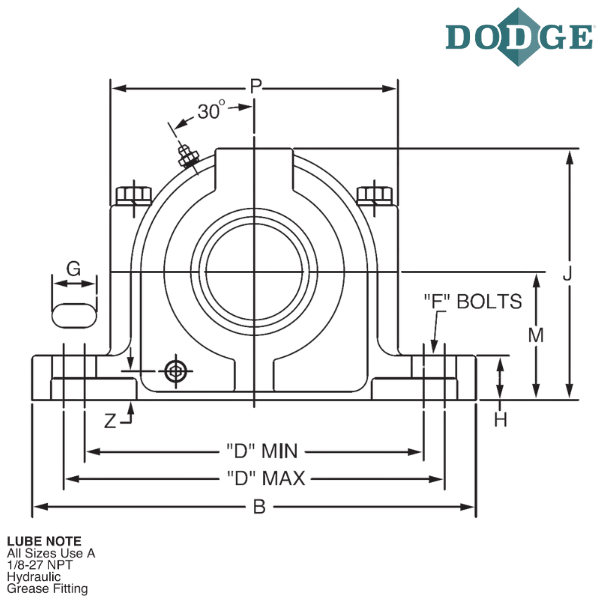

Overall Length (B) inch - 13
C (inch) - 3.5
Bolt to Bolt Minimum Distance (D min) inch - 9.88
Bolt to Bolt Maximum Distance (D max) inch - 10.88
E (inch) - 2.13
F-Bolt Diameter (inch) - 0.625
G (inch) - 1.25
H (inch) - 1.5
Overall Height (J) inch - 6.88
K (inch) - 2.38
L (inch) ** - 3.17
Base to Center Height (M) inch - 3.5
P (inch) - 8
Q (inch) *** - 1.47
S (inch) **** - 0.19
W (inch) - 1.25
Z (inch) - 0.63

Notes :
* Complete Pillow Block Includes
1) housing with Spacers
2) Standard Spherical Bearing
3) SNW Assembly (SNP above 8”) and TRIPLE-TECT Seals unless otherwise noted.

** Based on TRIPLE-TECT seals.
*** Distance shaft should extend beyond housing centerline of pillow block is closed end style.
**** Non-expansion bearing offset from centerline. For Expansion Bearing S = 0.

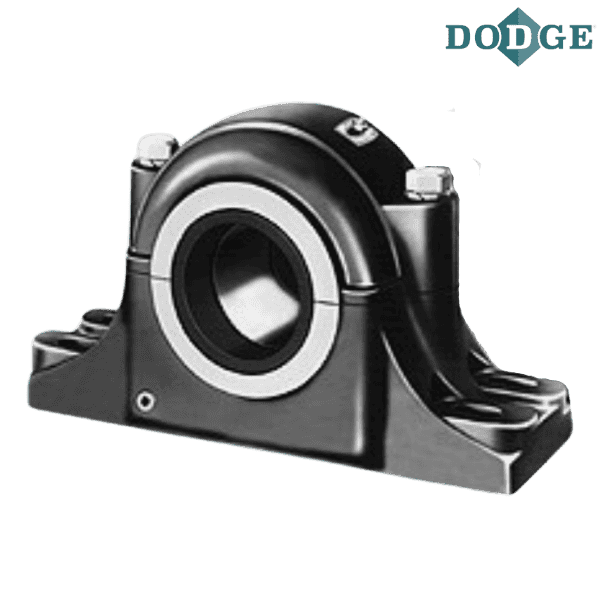

***** Images are for representation purposes only
