042413 DODGE - SP4B517-SAFS-300TT

Brand - DODGE
Item Number - 042413 DODGE - SP4B517-SAFS-300TT
Category - SAFS 4-Bolt Steel Housing Pillow Blocks (22200K/2300K Adapter Mount Bearing)
Description - SP4B517-SAFS-300TT
Shaft Size (inch) - 3
Housing Number - 517
Housing Item Number - 042436 DODGE - SH4S-517-SAFS
Approximate Weight (lbs) - 35

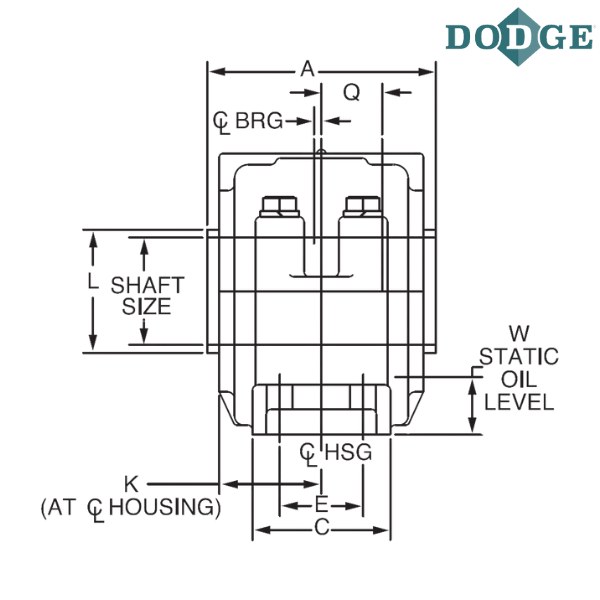

Dimension of A With Triple-Tect Seal (Std.) inch - 5.61
Dimension of A With LER/ER Seal (Optional) inch - 4.98
Dimension of A With Auxiliary Seal (Optional) inch - 7.8

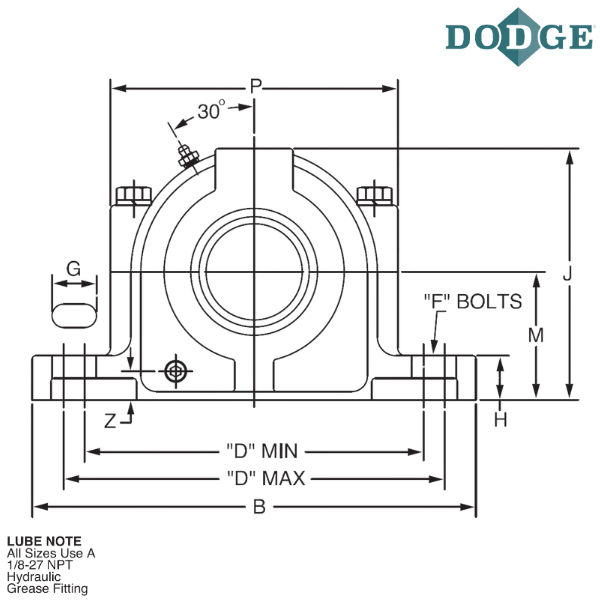

Overall Length (B) inch - 13
C (inch) - 3.5
Bolt to Bolt Minimum Distance (D min) inch - 10
Bolt to Bolt Maximum Distance (D max) inch - 11
E (inch) - 2.13
F-Bolt Diameter (inch) - 0.625
G (inch) - 1.25
H (inch) - 1.5
Overall Height (J) inch - 7.38
K (inch) - 2.47
L (inch) ** - 3.42
Base to Center Height (M) inch - 3.75
P (inch) - 8.25
Q (inch) *** - 1.56
S (inch) **** - 0.19
W (inch) - 1.38
Z (inch) - 0.75

Notes :
* Complete Pillow Block Includes
1) housing with Spacers
2) Standard Spherical Bearing
3) SNW Assembly (SNP above 8”) and TRIPLE-TECT Seals unless otherwise noted.

** Based on TRIPLE-TECT seals.
*** Distance shaft should extend beyond housing centerline of pillow block is closed end style.
**** Non-expansion bearing offset from centerline. For Expansion Bearing S = 0.

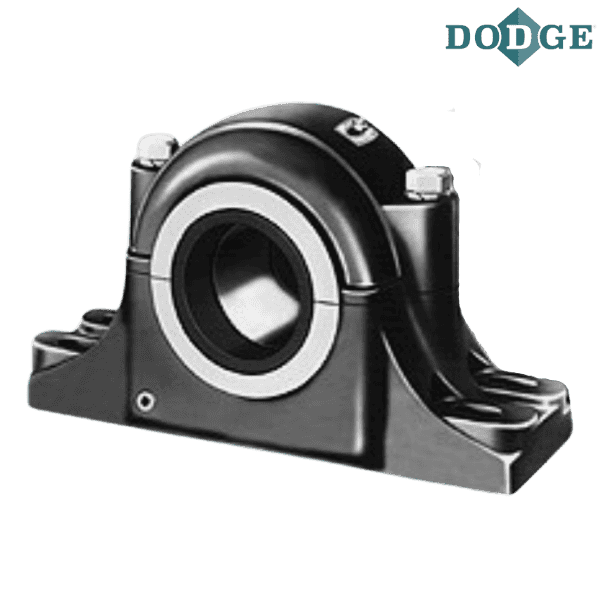

***** Images are for representation purposes only
