042375 DODGE - P4B048-SFXT-900TT SAF-XT

Brand - DODGE
Item Number - 042375 DODGE - P4B048-SFXT-900TT SAF-XT
Category - SAF-XT Pillow Blocks - 4-Bolt Base (22200K/23000K Adapter Mount Bearings)
Part Number * - 042375
Description - P4B048-SFXT-900TT SAF-XT
Shaft Size (inch) - 9
Complete Pillow Block Designation SAF-XT - 23048
Weight (lbs) - 405

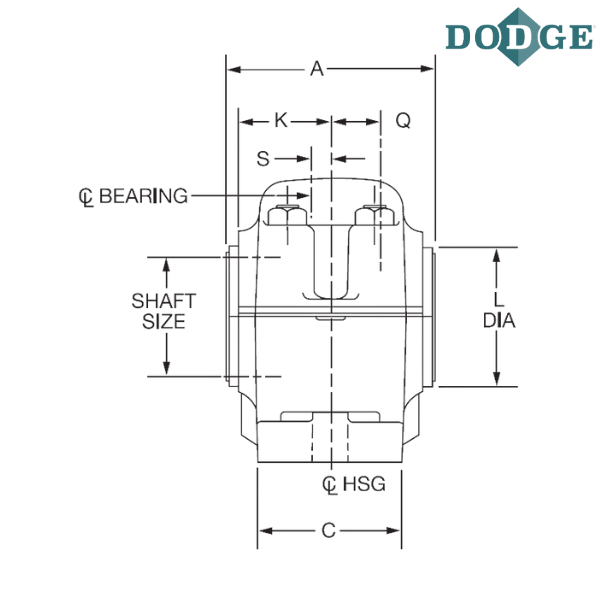

Dimension of A With Triple-Tect Seal (Std.) inch - 10.5
Dimension of A With LER Seal (Optional) inch - 9.06
Dimension of A With Auxiliary Seal (Optional) inch - 12.58

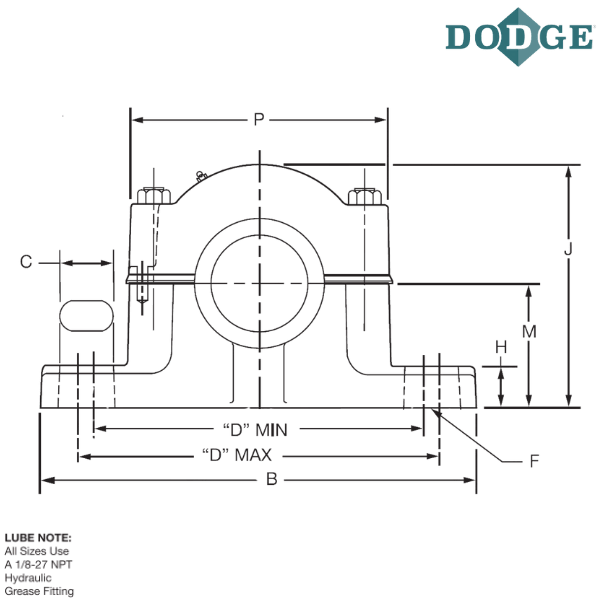

Overall Length (B) inch - 28.75
C (inch) - 8
Bolt to Bolt Minimum Distance (D min) inch - 22.5
Bolt to Bolt Maximum Distance (D max) inch - 25

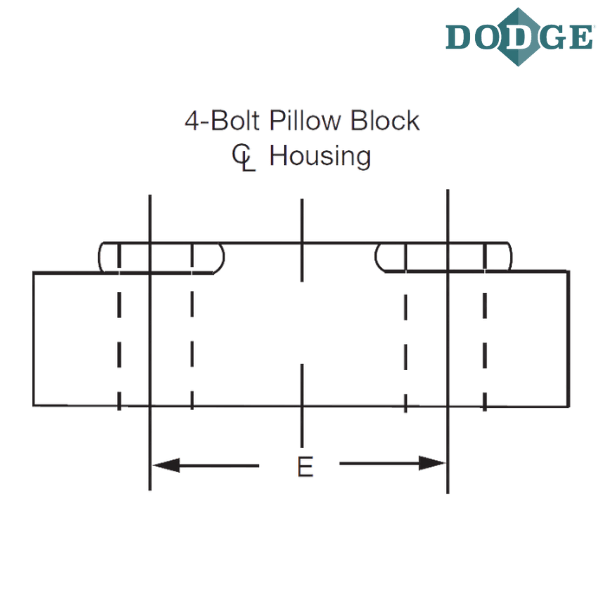

E (inch) - 5
F-Bolt Diameter (inch) - 1.25
G (inch) - 2.75
H (inch) - 3.25
Overall Height (J) inch - 17.06
K (inch) - 4.41
L (inch) ** - 9.33
Base to Center Height (M) inch - 8.25
P (inch) - 18.31
Q (inch) *** - 2.94
S CL of Housing to CL of Bearing (Expansion Block) inch - 0.78
S CL of Housing to CL of Bearing (Non-Expansion Block) inch - 0.78

Notes :
* Part Number Includes
1) housing with Spacers
2) Standard Spherical Bearing
3) SNW Assembly (SNP above 8”) and TRIPLE-TECT Seals unless otherwise noted.

** Dimensions shown with TRIPLE-TECT seals installed.
*** Distance shaft should extend beyond housing centerline of pillow block is closed end style.

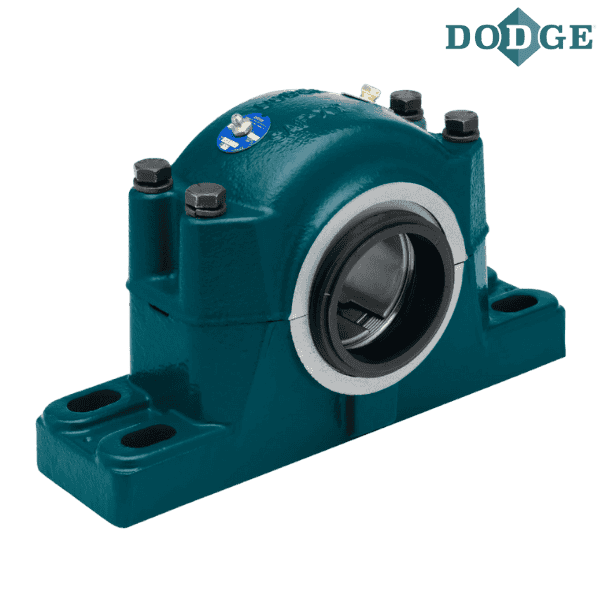

**** Images are for representation purposes only
