042307 DODGE - P4B538-SFXT-615TT SAF-XT

Brand - DODGE
Item Number - 042307 DODGE - P4B538-SFXT-615TT SAF-XT
Category - SAF-XT Pillow Blocks - 4-Bolt Base (22200K/23000K Adapter Mount Bearings)
Part Number * - 042307
Description - P4B538-SFXT-615TT SAF-XT
Shaft Size (inch) - 6.9375
Complete Pillow Block Designation SAF-XT - 22538
Weight (lbs) - 407

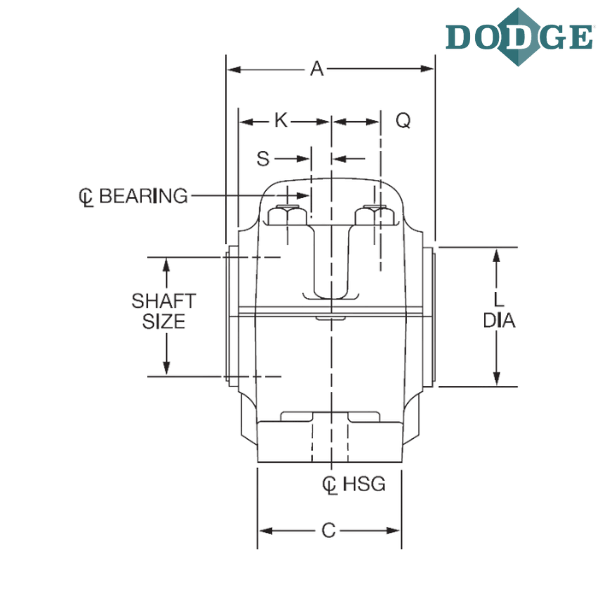

Dimension of A With Triple-Tect Seal (Std.) inch - 9.34
Dimension of A With LER Seal (Optional) inch - 8.63
Dimension of A With Auxiliary Seal (Optional) inch - 11.47

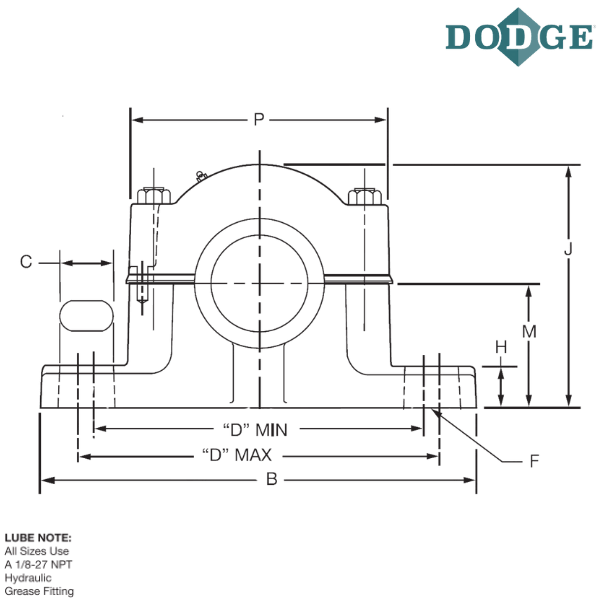

Overall Length (B) inch - 28
C (inch) - 7.5
Bolt to Bolt Minimum Distance (D min) inch - 22.13
Bolt to Bolt Maximum Distance (D max) inch - 23.88

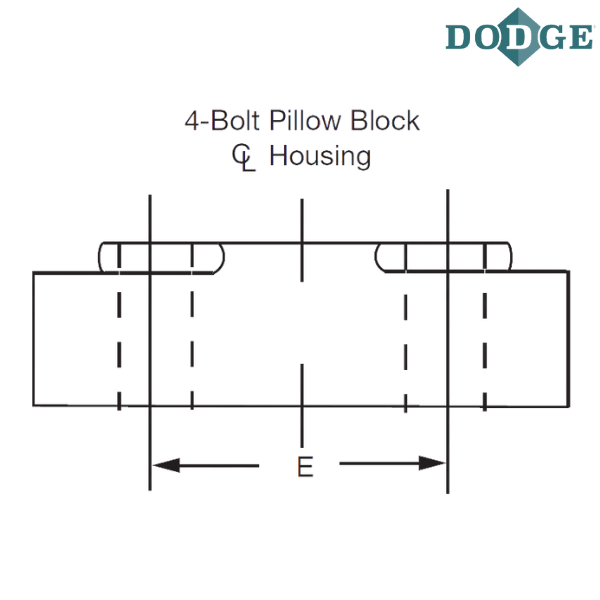

E (inch) - 4.5
F-Bolt Diameter (inch) - 1.25
G (inch) - 2.25
H (inch) - 3.13
Overall Height (J) inch - 16
K (inch) - 4.19
L (inch) ** - 7.38
Base to Center Height (M) inch - 7.88
P (inch) - 18.31
Q (inch) *** - 2.61
S CL of Housing to CL of Bearing (Expansion Block) inch - 0.63
S CL of Housing to CL of Bearing (Non-Expansion Block) inch - 0.81

Notes :
* Part Number Includes
1) housing with Spacers
2) Standard Spherical Bearing
3) SNW Assembly (SNP above 8”) and TRIPLE-TECT Seals unless otherwise noted.

** Dimensions shown with TRIPLE-TECT seals installed.
*** Distance shaft should extend beyond housing centerline of pillow block is closed end style.

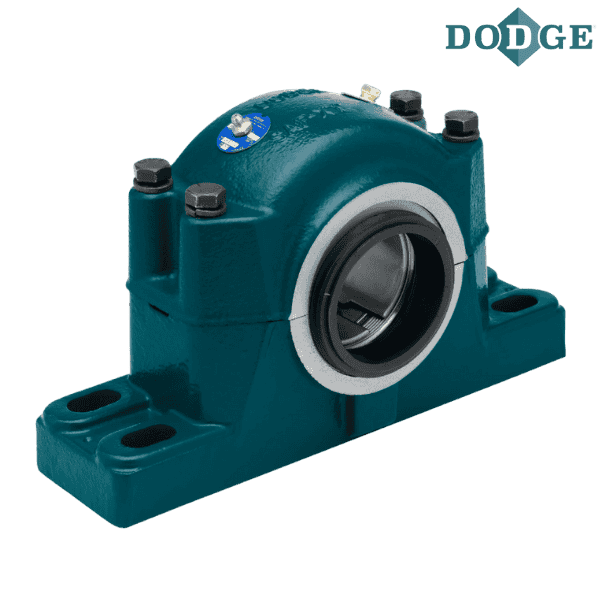

**** Images are for representation purposes only
