042306 DODGE - P4B536-SFXT-608TT SAF-XT

Brand - DODGE
Item Number - 042306 DODGE - P4B536-SFXT-608TT SAF-XT
Category - SAF-XT Pillow Blocks - 4-Bolt Base (22200K/23000K Adapter Mount Bearings)
Part Number * - 042306
Description - P4B536-SFXT-608TT SAF-XT
Shaft Size (inch) - 6.5
Complete Pillow Block Designation SAF-XT - 22536
Weight (lbs) - 371

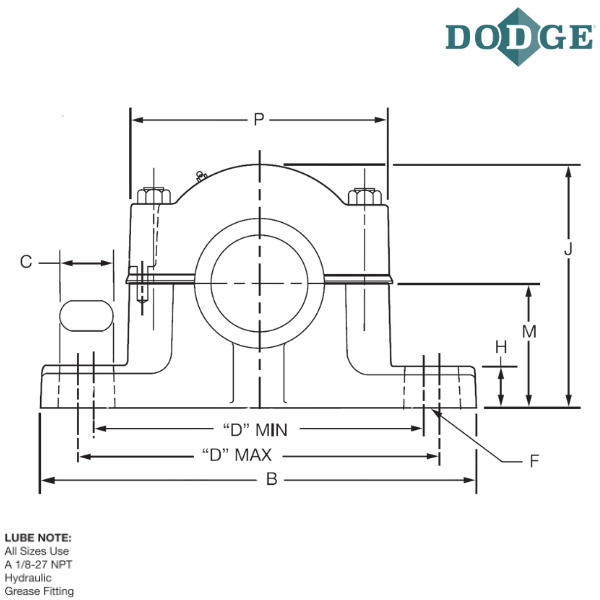

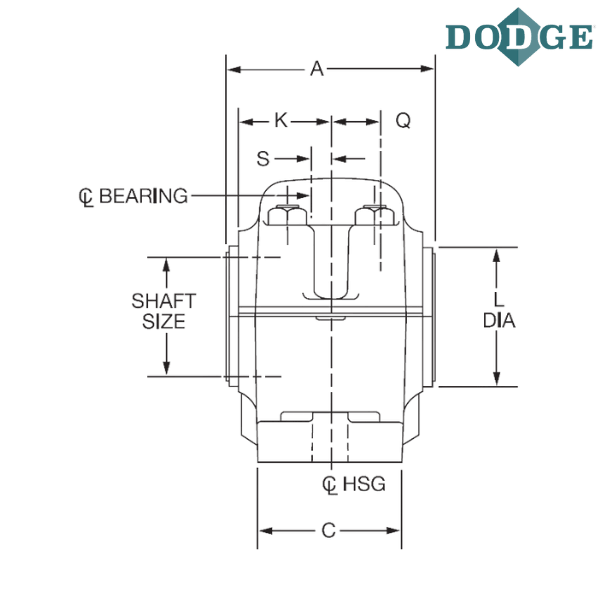

Dimension of A With Triple-Tect Seal (Std.) inch - 8.84
Dimension of A With LER Seal (Optional) inch - 8.13
Dimension of A With Auxiliary Seal (Optional) inch - 11.39
Overall Length (B) inch - 26.75
C (inch) - 7.13
Bolt to Bolt Minimum Distance (D min) inch - 21.38
Bolt to Bolt Maximum Distance (D max) inch - 23.13

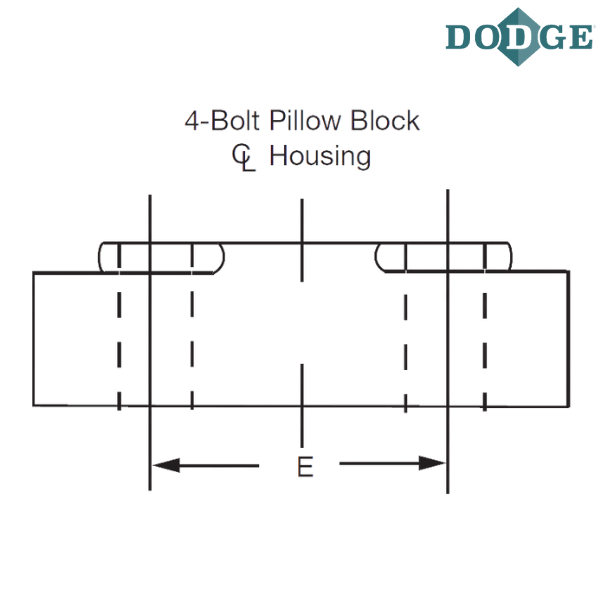

E (inch) - 4.63
F-Bolt Diameter (inch) - 1
G (inch) - 2
H (inch) - 3
Overall Height (J) inch - 15.25
K (inch) - 3.94
L (inch) ** - 6.8
Base to Center Height (M) inch - 7.5
P (inch) - 17.88
Q (inch) *** - 2.53
S CL of Housing to CL of Bearing (Expansion Block) inch - 0.55
S CL of Housing to CL of Bearing (Non-Expansion Block) inch - 0.75

Notes :
* Part Number Includes
1) housing with Spacers
2) Standard Spherical Bearing
3) SNW Assembly (SNP above 8”) and TRIPLE-TECT Seals unless otherwise noted.

** Dimensions shown with TRIPLE-TECT seals installed.
*** Distance shaft should extend beyond housing centerline of pillow block is closed end style.

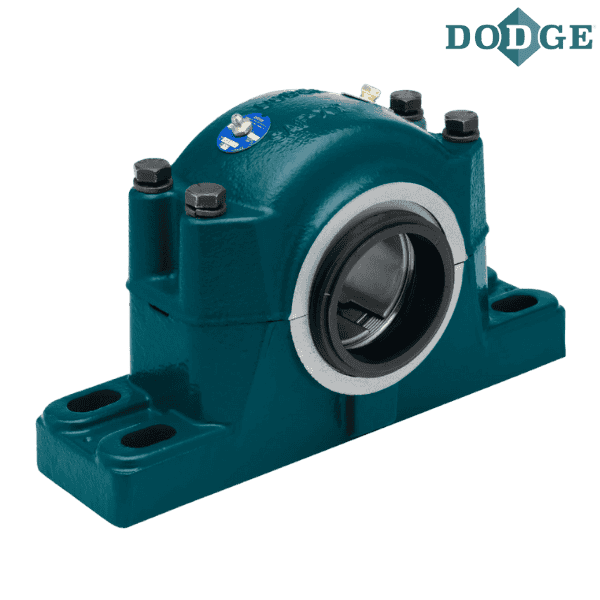

**** Images are for representation purposes only
