042283 DODGE - P4B532-SFXT-507TT SAF-XT

Brand - DODGE
Item Number - 042283 DODGE - P4B532-SFXT-507TT SAF-XT
Category - SAF-XT Pillow Blocks - 4-Bolt Base (22200K/23000K Adapter Mount Bearings)
Part Number * - 042283
Description - P4B532-SFXT-507TT SAF-XT
Shaft Size (inch) - 5.4375
Complete Pillow Block Designation SAF-XT - 22532
Weight (lbs) - 245

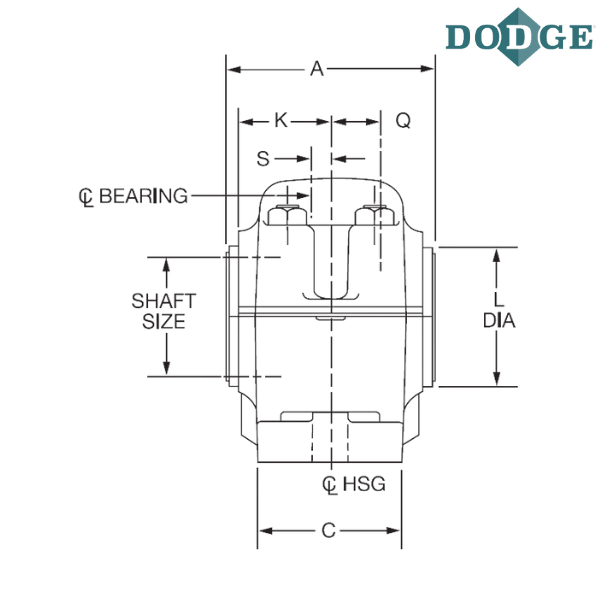

Dimension of A With Triple-Tect Seal (Std.) inch - 8.28
Dimension of A With LER Seal (Optional) inch - 7.69
Dimension of A With Auxiliary Seal (Optional) inch - 10.45

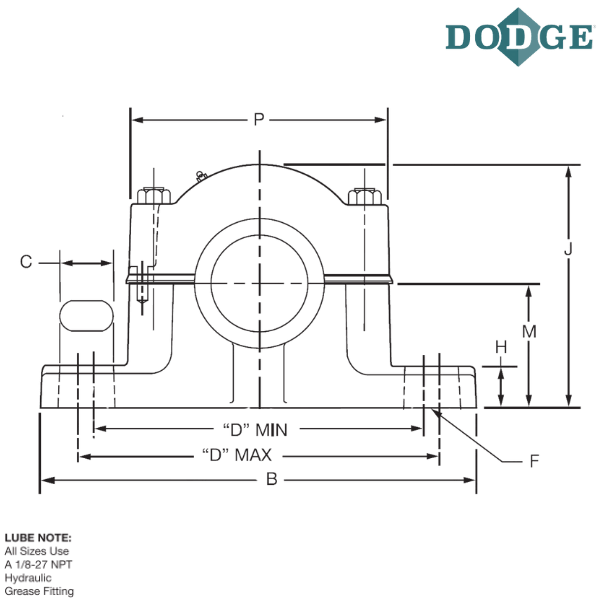

Overall Length (B) inch - 22
C (inch) - 6.25
Bolt to Bolt Minimum Distance (D min) inch - 17.38
Bolt to Bolt Maximum Distance (D max) inch - 19.13

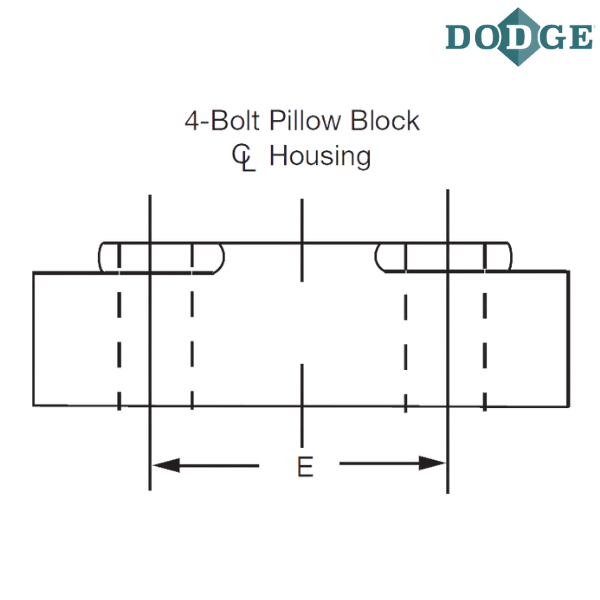

E (inch) - 3.75
F-Bolt Diameter (inch) - 1
G (inch) - 2
H (inch) - 2.75
Overall Height (J) inch - 13.69
K (inch) - 3.72
L (inch) ** - 5.88
Base to Center Height (M) inch - 6.69
P (inch) - 14.19
Q (inch) *** - 2.33
S CL of Housing to CL of Bearing (Expansion Block) inch - 0.58
S CL of Housing to CL of Bearing (Non-Expansion Block) inch - 0.77

Notes :
* Part Number Includes
1) housing with Spacers
2) Standard Spherical Bearing
3) SNW Assembly (SNP above 8”) and TRIPLE-TECT Seals unless otherwise noted.

** Dimensions shown with TRIPLE-TECT seals installed.
*** Distance shaft should extend beyond housing centerline of pillow block is closed end style.

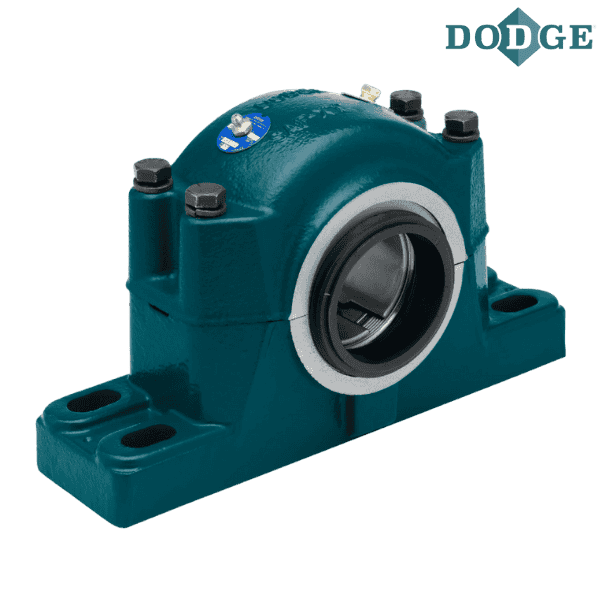

**** Images are for representation purposes only
