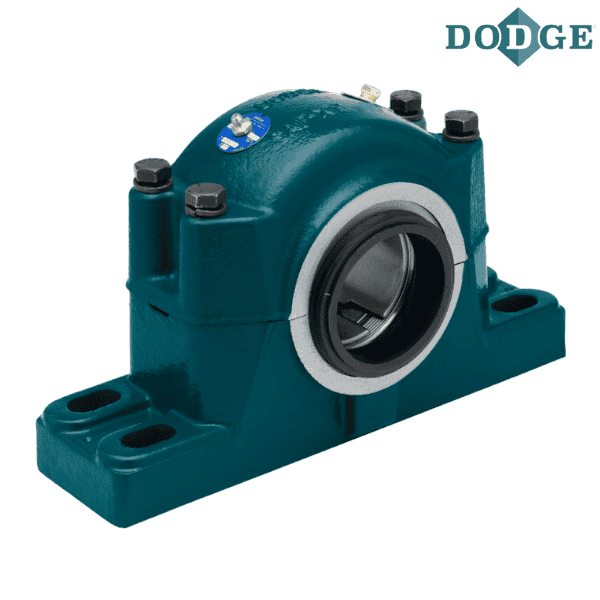

042273 DODGE - P4B528-SFXT-415TT SAF-XT

Brand - DODGE
Item Number - 042273 DODGE - P4B528-SFXT-415TT SAF-XT
Category - SAF-XT Pillow Blocks - 4-Bolt Base (22200K/23000K Adapter Mount Bearings)
Part Number * - 042273
Description - P4B528-SFXT-415TT SAF-XT
Shaft Size (inch) - 4.9375
Complete Pillow Block Designation SAF-XT - 22528
Weight (lbs) - 173.9

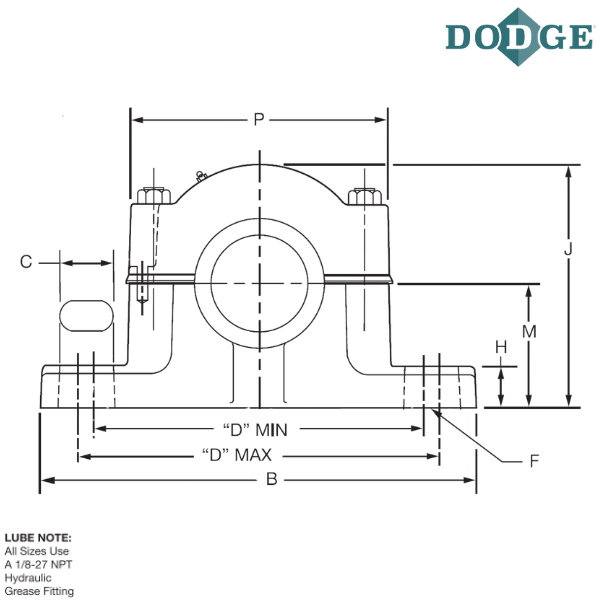

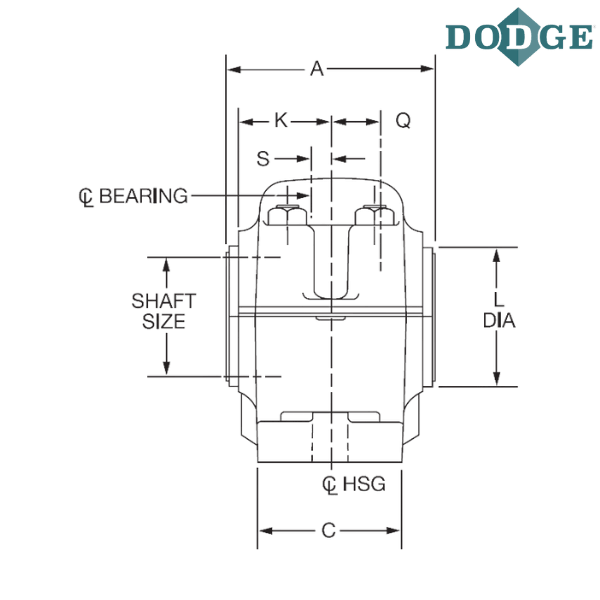

Dimension of A With Triple-Tect Seal (Std.) inch - 7.66
Dimension of A With LER Seal (Optional) inch - 7.06
Dimension of A With Auxiliary Seal (Optional) inch - 10.33
Overall Length (B) inch - 20.13
C (inch) - 5.88
Bolt to Bolt Minimum Distance (D min) inch - 15.63
Bolt to Bolt Maximum Distance (D max) inch - 17.38

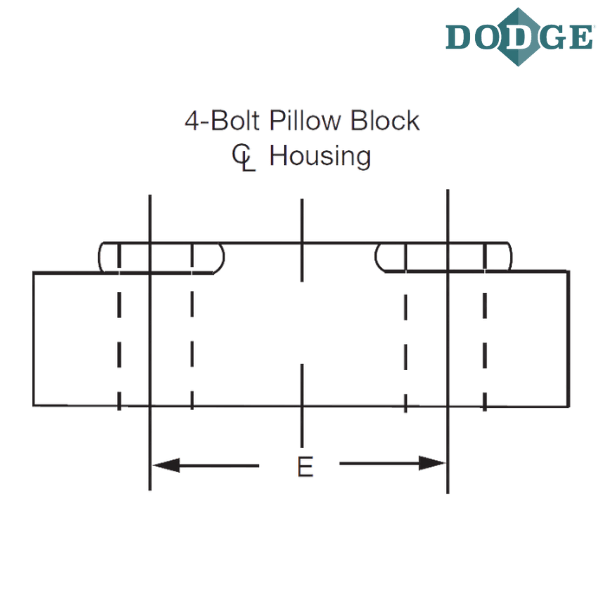

E (inch) - 3.38
F-Bolt Diameter (inch) - 1
G (inch) - 2
H (inch) - 23.5
Overall Height (J) inch - 12.13
K (inch) - 3.41
L (inch) ** - 5.36
Base to Center Height (M) inch - 6
P (inch) - 12.44
Q (inch) *** - 2.05
S CL of Housing to CL of Bearing (Expansion Block) inch - 0.5
S CL of Housing to CL of Bearing (Non-Expansion Block) inch - 0.69

Notes :
* Part Number Includes
1) housing with Spacers
2) Standard Spherical Bearing
3) SNW Assembly (SNP above 8”) and TRIPLE-TECT Seals unless otherwise noted.

** Dimensions shown with TRIPLE-TECT seals installed.
*** Distance shaft should extend beyond housing centerline of pillow block is closed end style.

**** Images are for representation purposes only
