042023 DODGE - P4B520-SFXT-308TT SAF-XT

Brand - DODGE
Item Number - 042023 DODGE - P4B520-SFXT-308TT SAF-XT
Category - SAF-XT Pillow Blocks - 4-Bolt Base (22200K/23000K Adapter Mount Bearings)
Part Number * - 042023
Description - P4B520-SFXT-308TT SAF-XT
Shaft Size (inch) - 3.5
Complete Pillow Block Designation SAF-XT - 22520
Weight (lbs) - 69.2

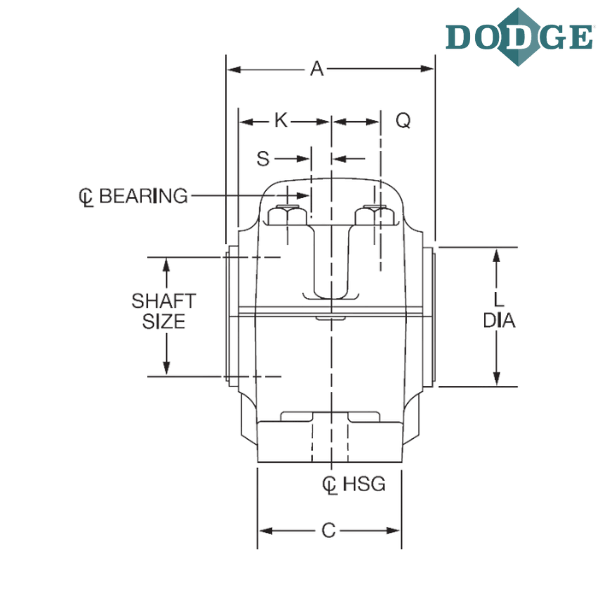

Dimension of A With Triple-Tect Seal (Std.) inch - 6.22
Dimension of A With LER Seal (Optional) inch - 5.63
Dimension of A With Auxiliary Seal (Optional) inch - 8.5

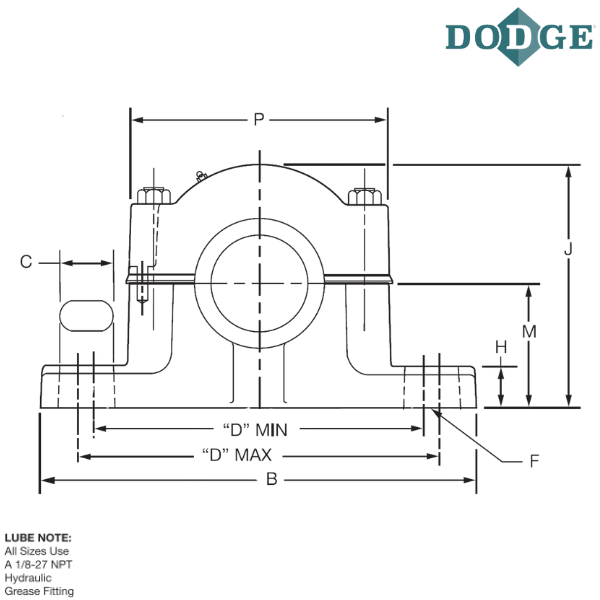

Overall Length (B) inch - 15.25
C (inch) - 4.38
Bolt to Bolt Minimum Distance (D min) inch - 11.75
Bolt to Bolt Maximum Distance (D max) inch - 12.75

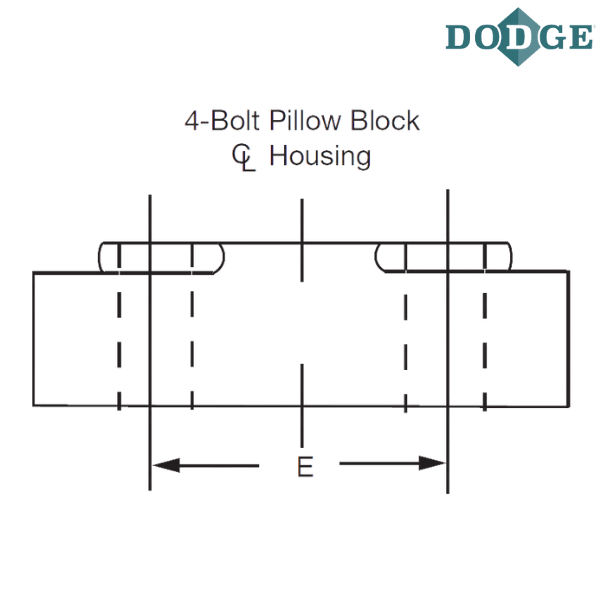

E (inch) - 2.38
F-Bolt Diameter (inch) - 0.75
G (inch) - 1.38
H (inch) - 1.75
Overall Height (J) inch - 8.75
K (inch) - 2.75
L (inch) ** - 3.83
Base to Center Height (M) inch - 4.5
P (inch) - 9.44
Q (inch) *** - 1.53
S CL of Housing to CL of Bearing (Expansion Block) inch - 0.38
S CL of Housing to CL of Bearing (Non-Expansion Block) inch - 0.56

Notes :
* Part Number Includes
1) housing with Spacers
2) Standard Spherical Bearing
3) SNW Assembly (SNP above 8”) and TRIPLE-TECT Seals unless otherwise noted.

** Dimensions shown with TRIPLE-TECT seals installed.
*** Distance shaft should extend beyond housing centerline of pillow block is closed end style.

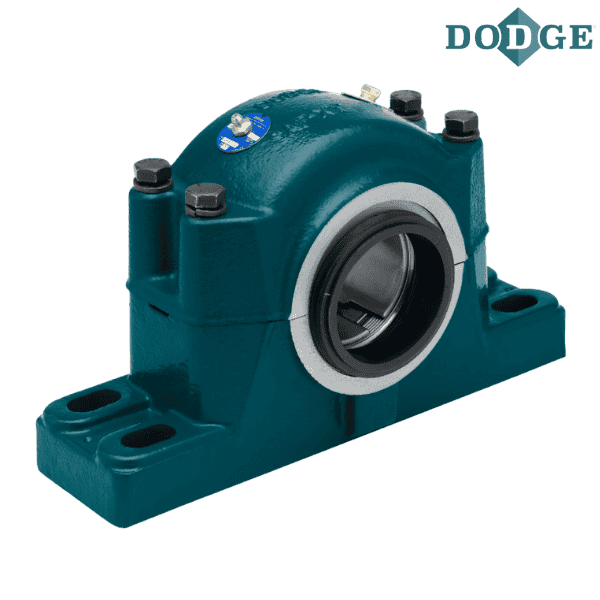

**** Images are for representation purposes only
