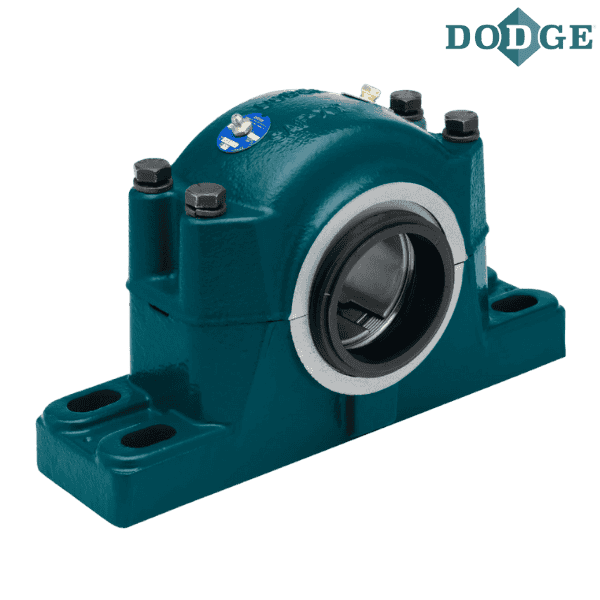

042021 DODGE - P4B518-SFXT-303TT SAF-XT

Brand - DODGE
Item Number - 042021 DODGE - P4B518-SFXT-303TT SAF-XT
Category - SAF-XT Pillow Blocks - 4-Bolt Base (22200K/23000K Adapter Mount Bearings)
Part Number * - 042021
Description - P4B518-SFXT-303TT SAF-XT
Shaft Size (inch) - 3.1875
Complete Pillow Block Designation SAF-XT - 22518
Weight (lbs) - 52.5

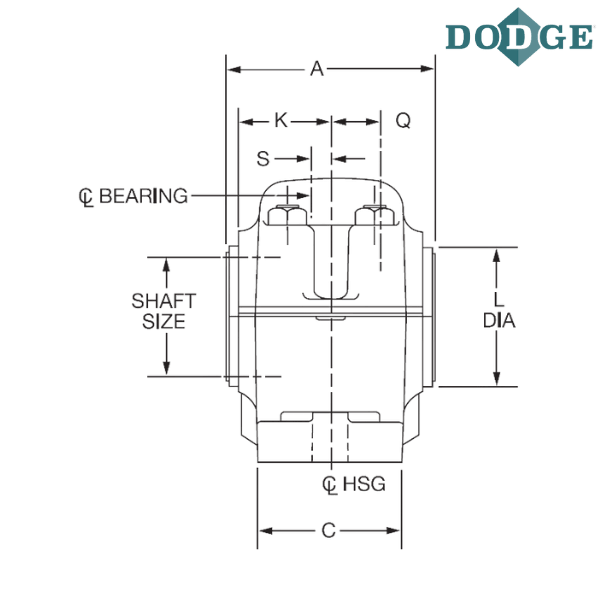

Dimension of A With Triple-Tect Seal (Std.) inch - 5.95
Dimension of A With LER Seal (Optional) inch - 5.44
Dimension of A With Auxiliary Seal (Optional) inch - 8

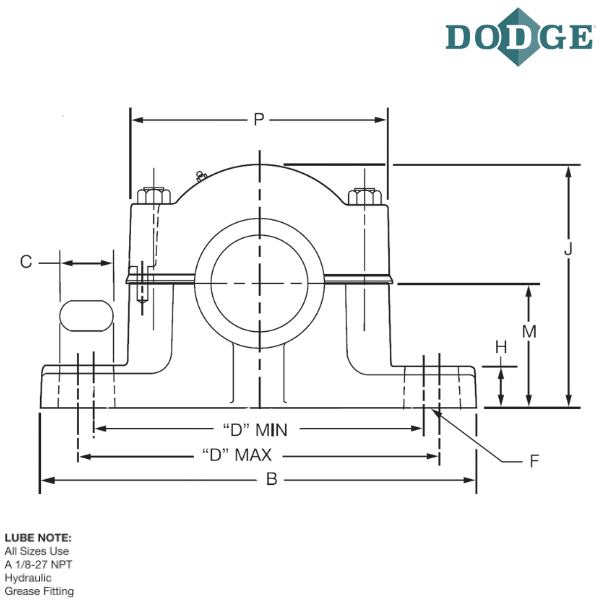

Overall Length (B) inch - 13.75
C (inch) - 3.88
Bolt to Bolt Minimum Distance (D min) inch - 10.5
Bolt to Bolt Maximum Distance (D max) inch - 11.5

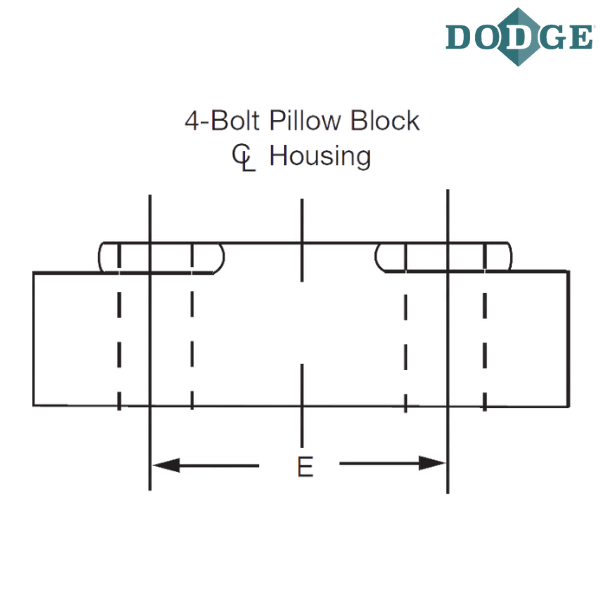

E (inch) - 2.13
F-Bolt Diameter (inch) - 0.625
G (inch) - 1.25
H (inch) - 1.63
Overall Height (J) inch - 7.75
K (inch) - 2.66
L (inch) ** - 3.69
Base to Center Height (M) inch - 4
P (inch) - 8.44
Q (inch) *** - 1.41
S CL of Housing to CL of Bearing (Expansion Block) inch - 0.59
S CL of Housing to CL of Bearing (Non-Expansion Block) inch - 0.48

Notes :
* Part Number Includes
1) housing with Spacers
2) Standard Spherical Bearing
3) SNW Assembly (SNP above 8”) and TRIPLE-TECT Seals unless otherwise noted.

** Dimensions shown with TRIPLE-TECT seals installed.
*** Distance shaft should extend beyond housing centerline of pillow block is closed end style.

**** Images are for representation purposes only
