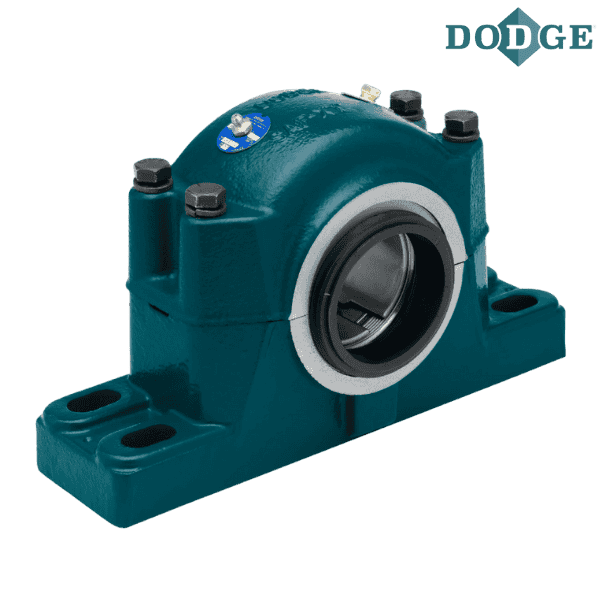

042015 DODGE - P4B515-SFXT-207TT SAF-XT

Brand - DODGE
Item Number - 042015 DODGE - P4B515-SFXT-207TT SAF-XT
Category - SAF-XT Pillow Blocks - 4-Bolt Base (22200K/23000K Adapter Mount Bearings)
Part Number * - 042015
Description - P4B515-SFXT-207TT SAF-XT
Shaft Size (inch) - 2.4375
Complete Pillow Block Designation SAF-XT - 22515
Weight (lbs) - 29.7

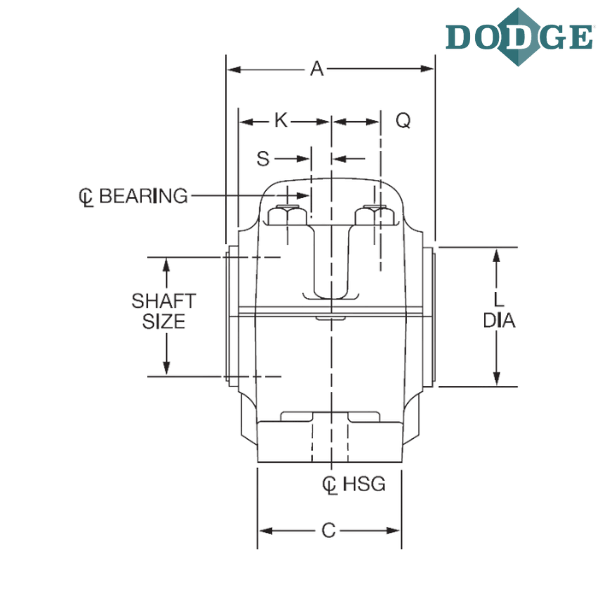

Dimension of A With Triple-Tect Seal (Std.) inch - 4.91
Dimension of A With LER Seal (Optional) inch - 4.42
Dimension of A With Auxiliary Seal (Optional) inch - 7.44

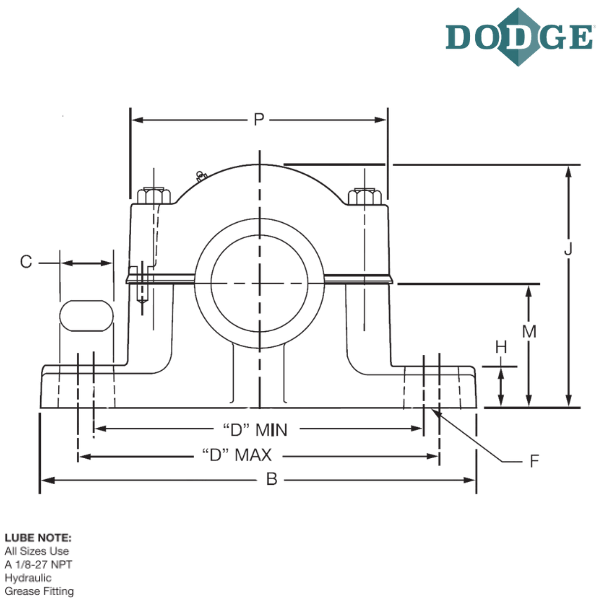

Overall Length (B) inch - 11.25
C (inch) - 3.13
Bolt to Bolt Minimum Distance (D min) inch - 8.63
Bolt to Bolt Maximum Distance (D max) inch - 9.63

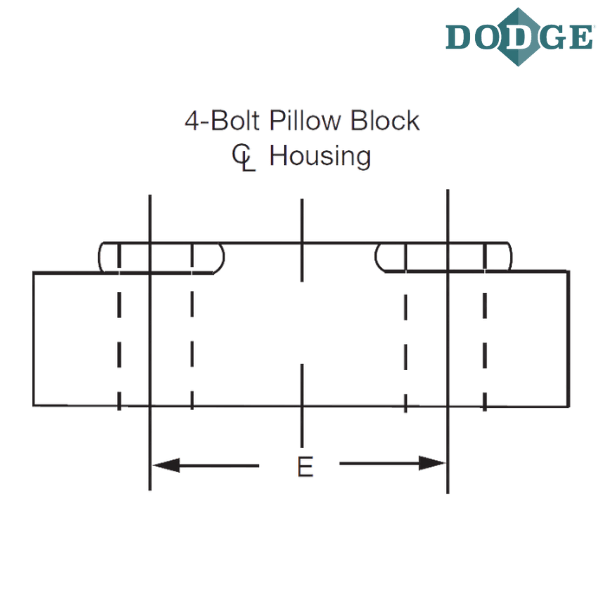

E (inch) - 1.88
F-Bolt Diameter (inch) - 0.5
G (inch) - 1.13
H (inch) - 1.25
Overall Height (J) inch - 6.44
K (inch) - 2.19
L (inch) ** - 2.8
Base to Center Height (M) inch - 3.25
P (inch) - 7
Q (inch) *** - 1.2
S CL of Housing to CL of Bearing (Expansion Block) inch - 0.16
S CL of Housing to CL of Bearing (Non-Expansion Block) inch - 0.27

Notes :
* Part Number Includes
1) housing with Spacers
2) Standard Spherical Bearing
3) SNW Assembly (SNP above 8”) and TRIPLE-TECT Seals unless otherwise noted.

** Dimensions shown with TRIPLE-TECT seals installed.
*** Distance shaft should extend beyond housing centerline of pillow block is closed end style.

**** Images are for representation purposes only
