042010 DODGE - P2B520-SFXT-307TT SAF-XT

Brand - DODGE
Item Number - 042010 DODGE - P2B520-SFXT-307TT SAF-XT
Category - SAF-XT Pillow Blocks - 2-Bolt Base (22200K Adapter Mount Bearings)
Part Number * - 042010
Description - P2B520-SFXT-307TT SAF-XT
Shaft Size (inch) - 3.4375
Complete Pillow Block Designation SAF-XT - 22520
Weight (lbs) - 69.5

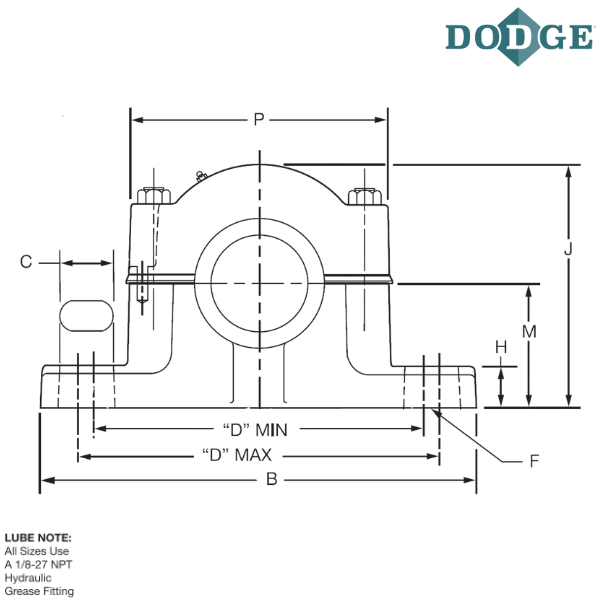

Dimension of A With Triple-Tect Seal (Std.) inch - 6.22
Dimension of A With LER Seal (Optional) inch - 5.63
Dimension of A With Auxiliary Seal (Optional) inch - 8.5
Overall Length (B) inch - 15.25
C (inch) - 4.38
Bolt to Bolt Minimum Distance (D min) inch - 11.88
Bolt to Bolt Maximum Distance (D max) inch - 12.63
F-Bolt Diameter (inch) - 0.875
G (inch) - 1.38
H (inch) - 1.75
Overall Height (J) inch - 8.75
K (inch) - 2.75
L (inch) ** - 3.83
Base to Center Height (M) inch - 4.5
P (inch) - 9.44
Q (inch) *** - 1.53
S CL of Housing to CL of Bearing (Expansion Block) inch - 0.38
S CL of Housing to CL of Bearing (Non-Expansion Block) inch - 0.56

Notes :
* Part Number Includes
1) Furnished unless otherwise specified
2) housing with Spacers
3) Standard Spherical Bearing
4) SNW Assembly and TRIPLE-TECT Seals.
** Dimensions shown with TRIPLE-TECT seals installed.
*** Distance shaft should extend beyond housing centerline ( CL) if pillow block is closed end style.

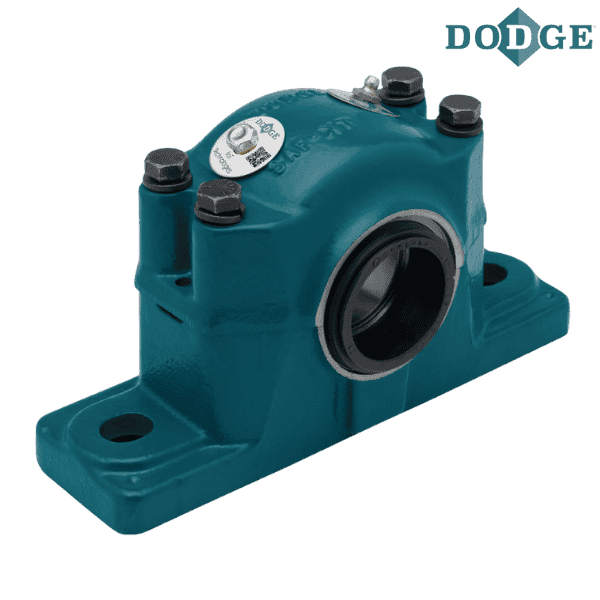

**** Images are for representation purposes only
