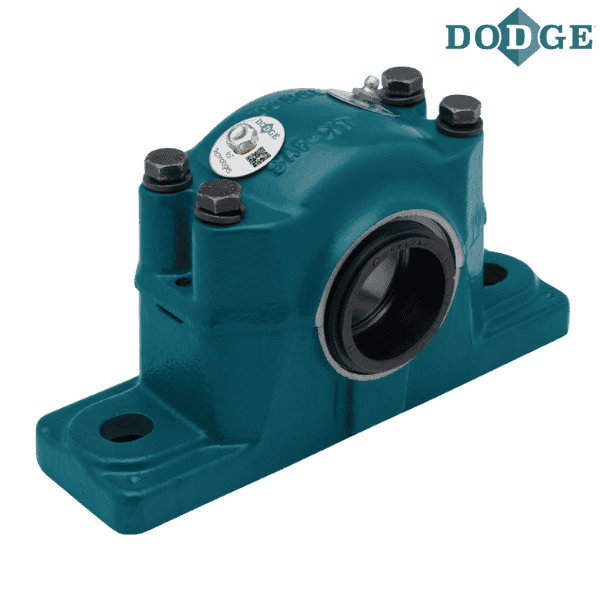

042002 DODGE - P2B513-SFXT-203TT SAF-XT

Brand - DODGE
Item Number - 042002 DODGE - P2B513-SFXT-203TT SAF-XT
Category - SAF-XT Pillow Blocks - 2-Bolt Base (22200K Adapter Mount Bearings)
Part Number * - 042002
Description - P2B513-SFXT-203TT SAF-XT
Shaft Size (inch) - 2.1875
Complete Pillow Block Designation SAF-XT - 22513
Weight (lbs) - 23.8

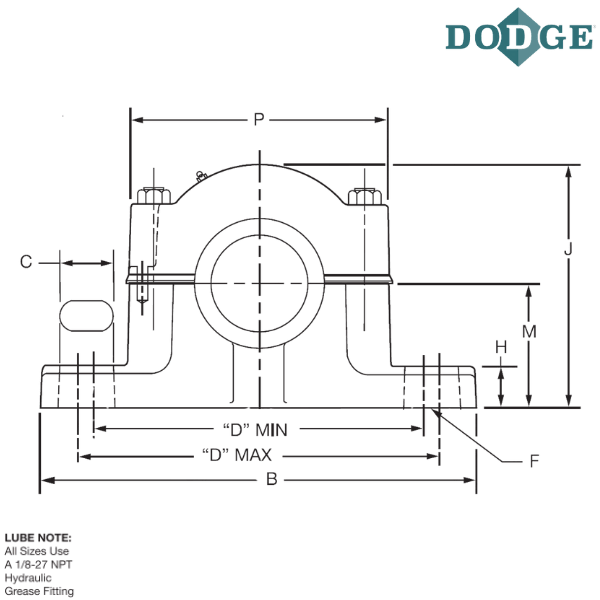

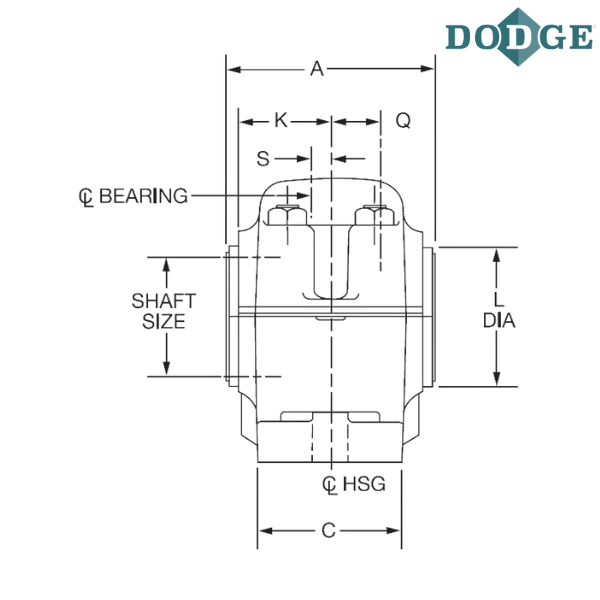

Dimension of A With Triple-Tect Seal (Std.) inch - 4.53
Dimension of A With LER Seal (Optional) inch - 4
Dimension of A With Auxiliary Seal (Optional) inch - 5.81
Overall Length (B) inch - 11
C (inch) - 3.13
Bolt to Bolt Minimum Distance (D min) inch - 8.25
Bolt to Bolt Maximum Distance (D max) inch - 9.38
F-Bolt Diameter (inch) - 0.625
G (inch) - 1.31
H (inch) - 1
Overall Height (J) inch - 5.94
K (inch) - 2.03
L (inch) ** - 2.55
Base to Center Height (M) inch - 3
P (inch) - 6.41
Q (inch) *** - 1.13
S CL of Housing to CL of Bearing (Expansion Block) inch - 0.25
S CL of Housing to CL of Bearing (Non-Expansion Block) inch - 0.39

Notes :
* Part Number Includes
1) Furnished unless otherwise specified
2) housing with Spacers
3) Standard Spherical Bearing
4) SNW Assembly and TRIPLE-TECT Seals.
** Dimensions shown with TRIPLE-TECT seals installed.
*** Distance shaft should extend beyond housing centerline ( CL) if pillow block is closed end style.

**** Images are for representation purposes only
