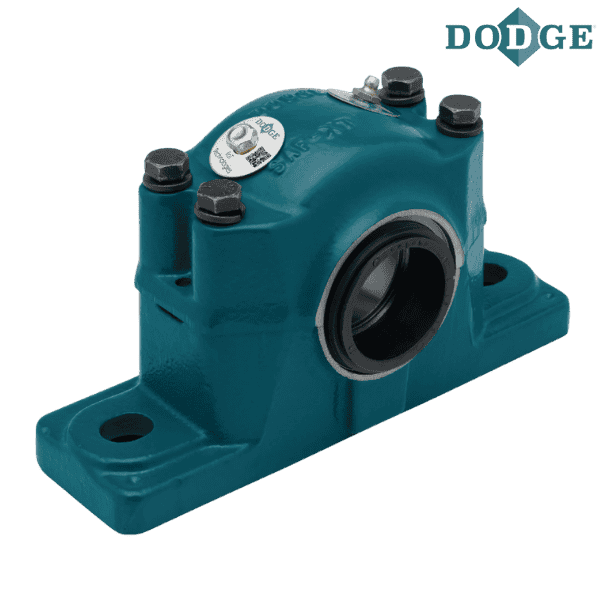

042001 DODGE - P2B511-SFXT-115TT SAF-XT

Brand - DODGE
Item Number - 042001 DODGE - P2B511-SFXT-115TT SAF-XT
Category - SAF-XT Pillow Blocks - 2-Bolt Base (22200K Adapter Mount Bearings)
Part Number * - 042001
Description - P2B511-SFXT-115TT SAF-XT
Shaft Size (inch) - 1.9375
Complete Pillow Block Designation SAF-XT - 22511
Weight (lbs) - 17.3

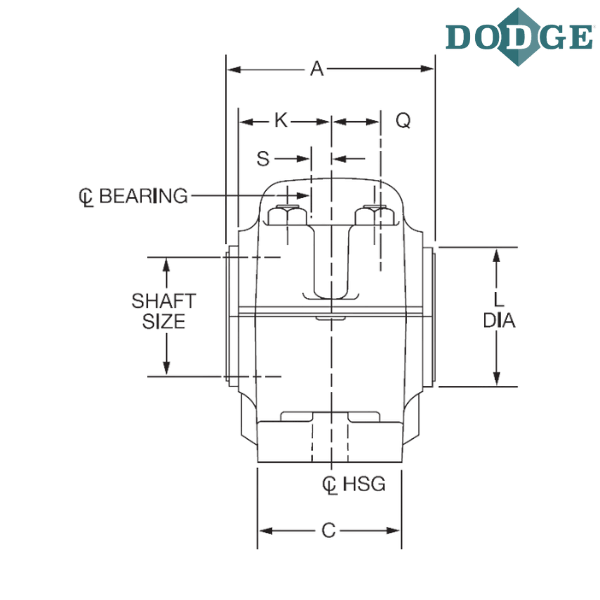

Dimension of A With Triple-Tect Seal (Std.) inch - 4.14
Dimension of A With LER Seal (Optional) inch - 3.6.3
Dimension of A With Auxiliary Seal (Optional) inch - 5.55

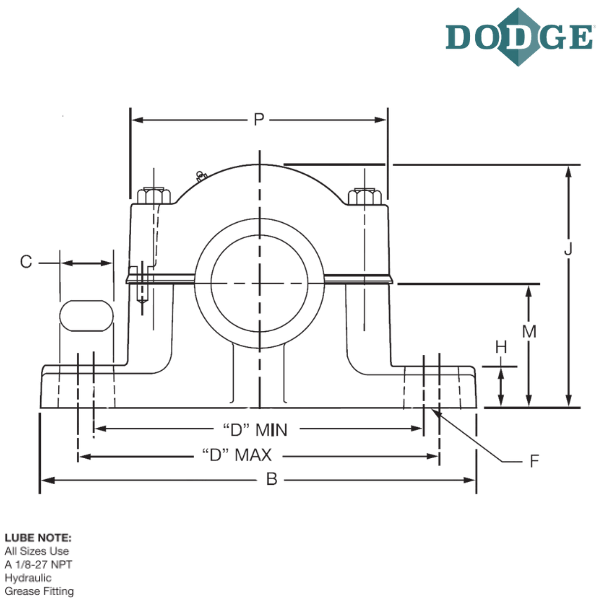

Overall Length (B) inch - 9.63
C (inch) - 2.75
Bolt to Bolt Minimum Distance (D min) inch - 7.5
Bolt to Bolt Maximum Distance (D max) inch - 7.75
F-Bolt Diameter (inch) - 0.625
G (inch) - 0.88
H (inch) - 0.94
Overall Height (J) inch - 5.25
K (inch) - 1.84
L (inch) ** - 2.3
Base to Center Height (M) inch - 2.75
P (inch) - 5.63
Q (inch) *** - 0.97
S CL of Housing to CL of Bearing (Expansion Block) inch - 0.19
S CL of Housing to CL of Bearing (Non-Expansion Block) inch - 0.3

Notes :
* Part Number Includes
1) Furnished unless otherwise specified
2) housing with Spacers
3) Standard Spherical Bearing
4) SNW Assembly and TRIPLE-TECT Seals.
** Dimensions shown with TRIPLE-TECT seals installed.
*** Distance shaft should extend beyond housing centerline ( CL) if pillow block is closed end style.

**** Images are for representation purposes only
