041885 DODGE - P4B538-USAF-700TT

Brand - DODGE
Item Number - 041885 DODGE - P4B538-USAF-700TT

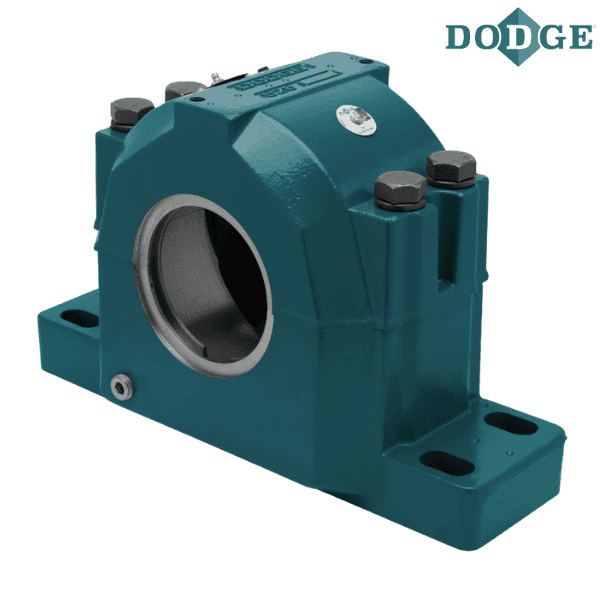

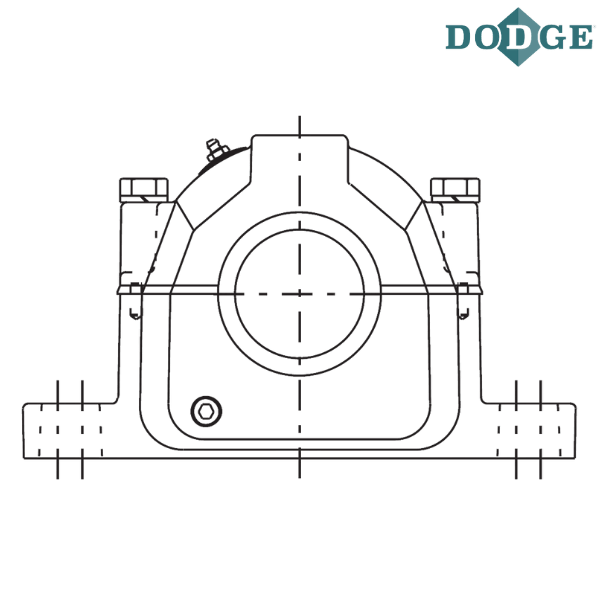

Category - USAF 500 Adapter Mount Pillow Block with TRIPLE-TECT Seal Assembly (500 Series Open End Housing)

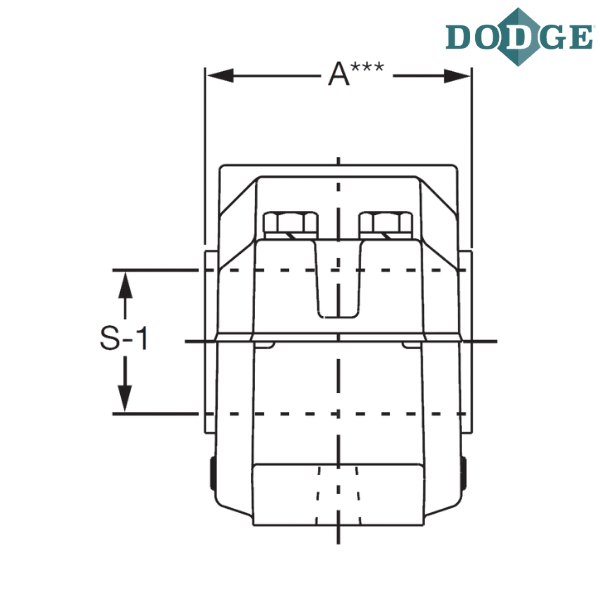

Shaft Diameter (S-1) inch - 7
Description - P4B538-USAF-700TT
Housing Item Number - 044049 DODGE - H4S-538-USAF
Bearing Item Number - 422027 DODGE - BRG22238KC3
Dynamic Capacity (C) lbf - 270000
Maximum RPM (Grease) - 1200
SNW Item Number - 043625 DODGE - SNW38X700
TRIPLE-TECT Seal Item Number - 043565 DODGE - 72TT700
LER Seal Item Number ** - 042538 DODGE - 72LER700
Auxiliary (Taconite) Seal Item Number - 043109 DODGE - 72AUX700
End Cover Item Number - 040683 DODGE - EC72

Notes :
P4B - 4 Bolt Base Pillow Block, Cast Iron, Both Ends Open
5XX - For Adapter Mounted 22200K Series Bearing
USAF - UNIFIED SAF Pillow Block (Inch Dimensions)
700 - 7”
TT - TRIPLE-TECT
H4S - 4 Bolt Base Pillow Block, Cast Iron, Both Ends Open
5XX - For Adapter Mounted 22200K Series Bearing
BRG - Roller Bearing
222 - 22200 Series
K - Tapered Adapter Sleeve Mounting. Otherwise Bearing Has Cylindrical Bore for Direct Mounting.
C3 - Bearing clearance

** LER seal is manufactured from Steel.

*** Images are for representation purposes only
