041879 DODGE - P4B532-USAF-508TT

Brand - DODGE
Item Number - 041879 DODGE - P4B532-USAF-508TT
Category - USAF 500 Adapter Mount Pillow Block with TRIPLE-TECT Seal Assembly (500 Series Open End Housing)

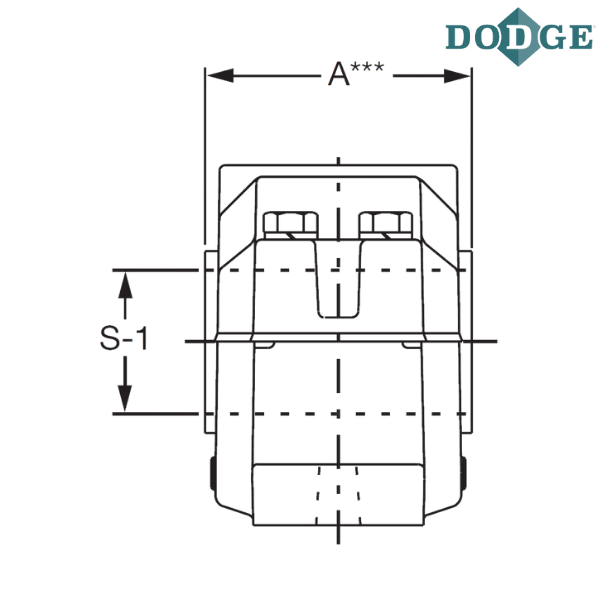

Shaft Diameter (S-1) inch - 5.5
Description - P4B532-USAF-508TT
Housing Item Number - 044040 DODGE - H4S-532-USAF
Bearing Item Number - 422021 DODGE - BRG22232KC3
Dynamic Capacity (C) lbf - 260000
Maximum RPM (Grease) - 1500
SNW Item Number - 043634 DODGE - SNW32X508
TRIPLE-TECT Seal Item Number - 043574 DODGE - 60TT508
LER Seal Item Number ** - 042532 DODGE - 60LER508
Auxiliary (Taconite) Seal Item Number - 040895 DODGE - 60AUX508
End Cover Item Number - 040714 DODGE - EC60

Notes :
P4B - 4 Bolt Base Pillow Block, Cast Iron, Both Ends Open
5XX - For Adapter Mounted 22200K Series Bearing
USAF - UNIFIED SAF Pillow Block (Inch Dimensions)
508 - 5 1/2”
TT - TRIPLE-TECT
H4S - 4 Bolt Base Pillow Block, Cast Iron, Both Ends Open
5XX - For Adapter Mounted 22200K Series Bearing
BRG - Roller Bearing
222 - 22200 Series
K - Tapered Adapter Sleeve Mounting. Otherwise Bearing Has Cylindrical Bore for Direct Mounting.
C3 - Bearing clearance

** LER seal is manufactured from Steel.

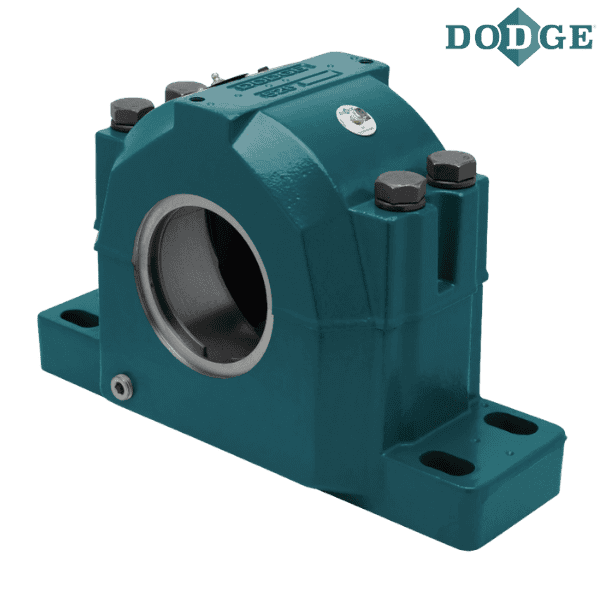

*** Images are for representation purposes only
