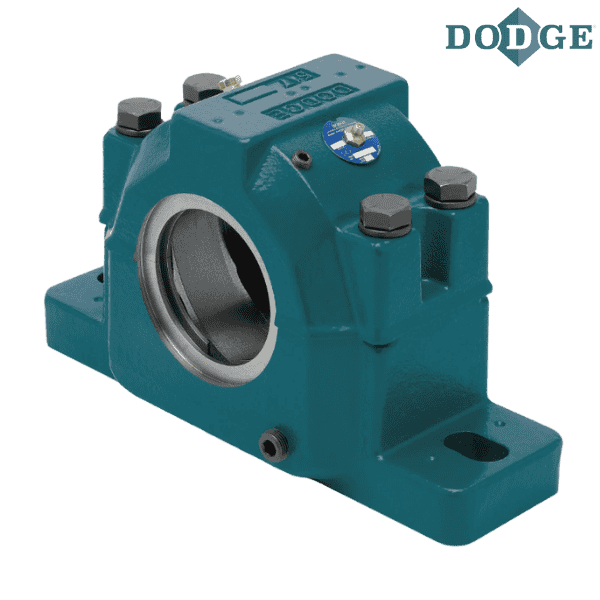

041868 DODGE - P2B520-USAF-307TT

Brand - DODGE
Item Number - 041868 DODGE - P2B520-USAF-307TT
Category - USAF 500 Adapter Mount Pillow Block with TRIPLE-TECT Seal Assembly (500 Series Open End Housing)
Shaft Diameter (S-1) inch - 3.4375
Description - P2B520-USAF-307TT
Housing Item Number - 044020 DODGE - H2S-520-USAF
Bearing Item Number - 422009 DODGE - BRG22220KC3
Dynamic Capacity (C) lbf - 96500
Maximum RPM (Grease) - 2200
SNW Item Number - 046361 DODGE - H320-SNW-307
TRIPLE-TECT Seal Item Number - 043549 DODGE - 46TT307
TTDN Seal Item Number - 039859 DODGE - 46TTDN307
LER Seal Item Number ** - 042521 DODGE - 46LER307
Auxiliary (Taconite) Seal Item Number - 042383 DODGE - 46AUX307
End Cover Item Number - 040708 DODGE - EC46

Notes :
P2B - 2 Bolt Base Pillow Block, Cast Iron, Both Ends Open
5XX - For Adapter Mounted 22200K Series Bearing
USAF - UNIFIED SAF Pillow Block (Inch Dimensions)
307 - 3 7/16”
TT - TRIPLE-TECT
H2S - 2 Bolt Base Pillow Block, Cast Iron, Both Ends Open
5XX - For Adapter Mounted 22200K Series Bearing
BRG - Roller Bearing
222 - 22200 Series
K - Tapered Adapter Sleeve Mounting. Otherwise Bearing Has Cylindrical Bore for Direct Mounting.
C3 - Bearing clearance

** LER seal is manufactured from Steel.

*** Images are for representation purposes only
