Description
Brand - DODGE
Item Number - 040830 DODGE - SNP3080-1500
Category - USDAF SNP Adapter Assembly
Housing - 80
Bearing Number - 23080K
SNP Number - SNP3080-1500
Approximate Weight (kg) - 100
Shaft Size (V) inch - 15
Outer Diameter (L) inch - 18.51
F (inch) - 2.52
M (inch) - 8.4
Notes :
SNP - Sleeve, Nut and Lockplate Assembly 048 (8-7/16”) and Larger Sizes

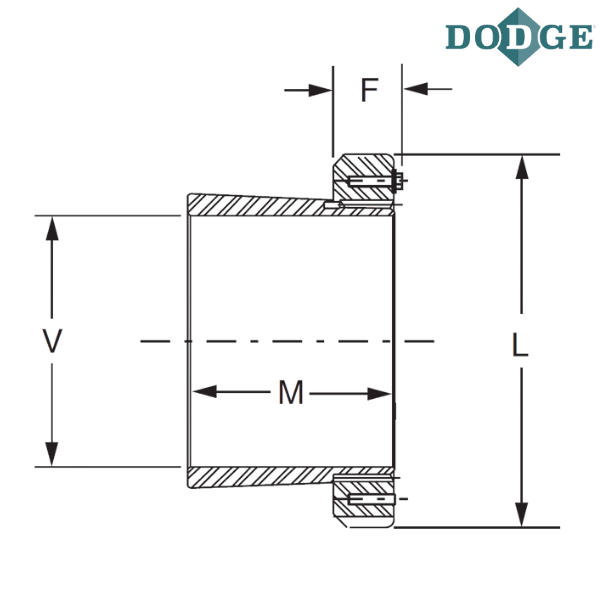

** Images are for representation purposes only
