Description
Brand - DODGE
Item Number - 040034 DODGE - 2 15/16 SOLID STEEL COLLAR
Category - Shaft Collar (Solid Steel)
Shaft Size (inch) - 2.9375
Description - 2 15/16 SOLID STEEL COLLAR

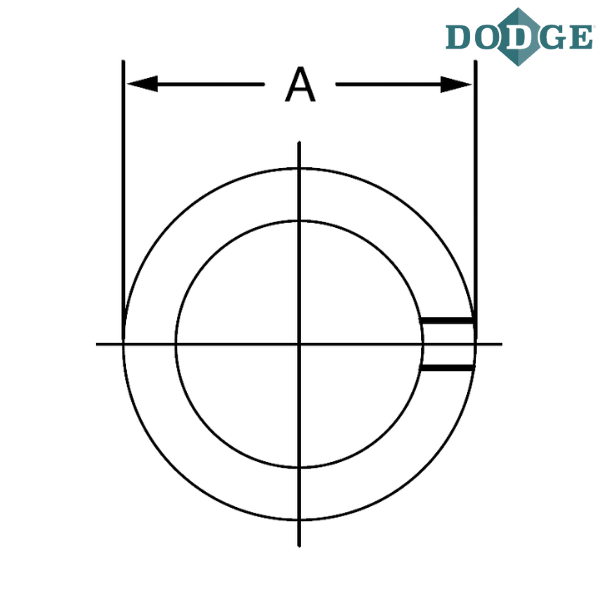

Outer Diameter (A) inch - 4.25

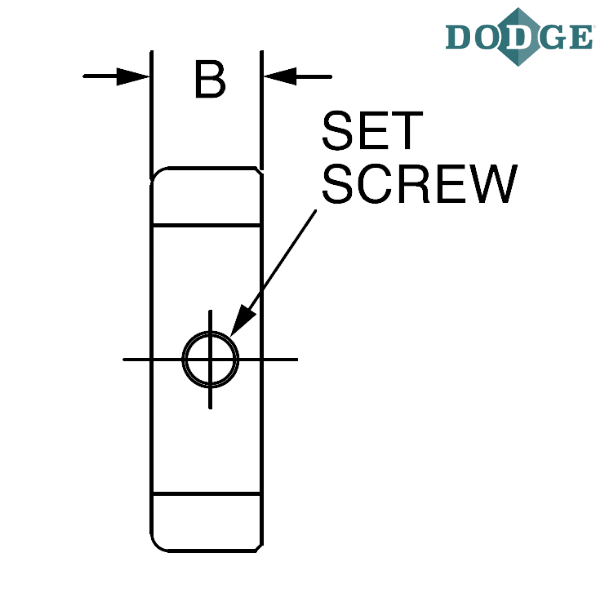

Width (B) inch - 1.13
Screw (inch) - 0.5
Weight (lbs) - 2.2
Notes :
Steel is mild carbon steel.
Stainless is 300-series stainless.
All sizes are fitted with one setscrew.

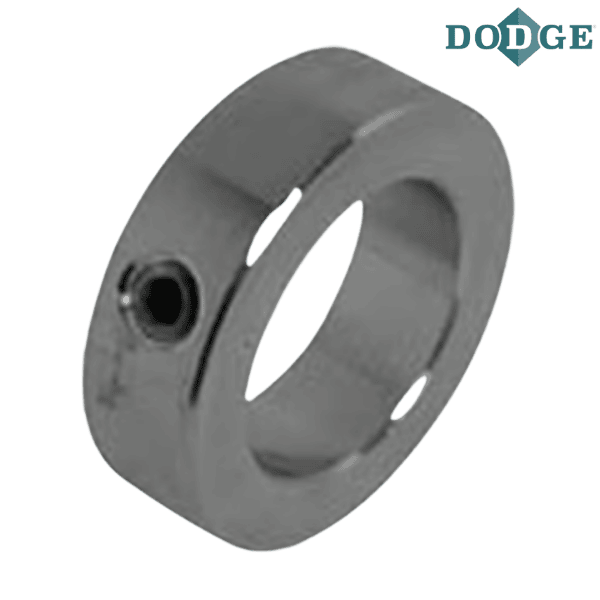

** Images are for representation purposes only
