Description
Brand - DODGE

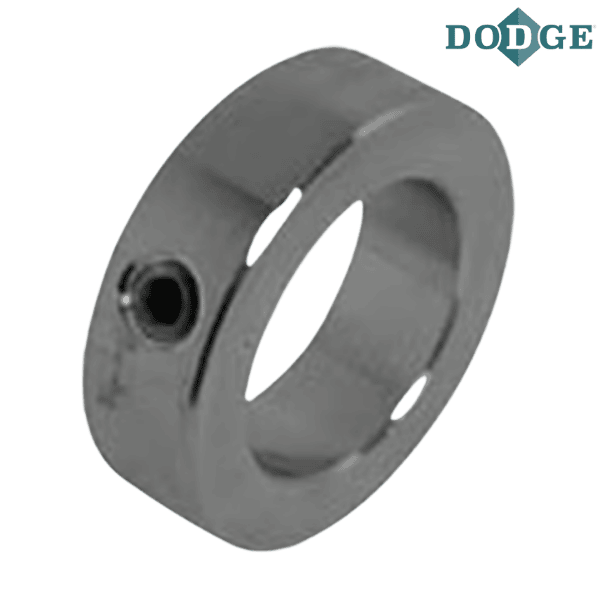

Item Number - 040031 DODGE - 2 1/4 SOLID STEEL COLLAR
Category - Shaft Collar (Solid Steel)
Shaft Size (inch) - 2.25
Description - 2 1/4 SOLID STEEL COLLAR

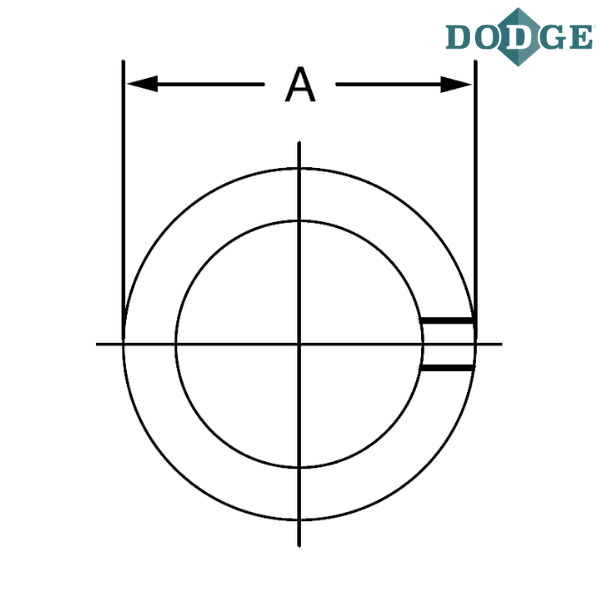

Outer Diameter (A) inch - 3.25

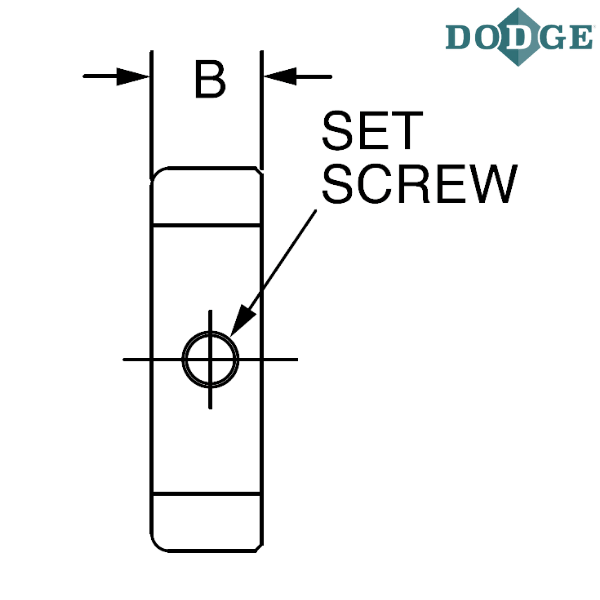

Width (B) inch - 0.94
Screw (inch) - 0.5
Weight (lbs) - 1.2
Notes :
Steel is mild carbon steel.
Stainless is 300-series stainless.
All sizes are fitted with one setscrew.
** Images are for representation purposes only
