Description
Brand - DODGE

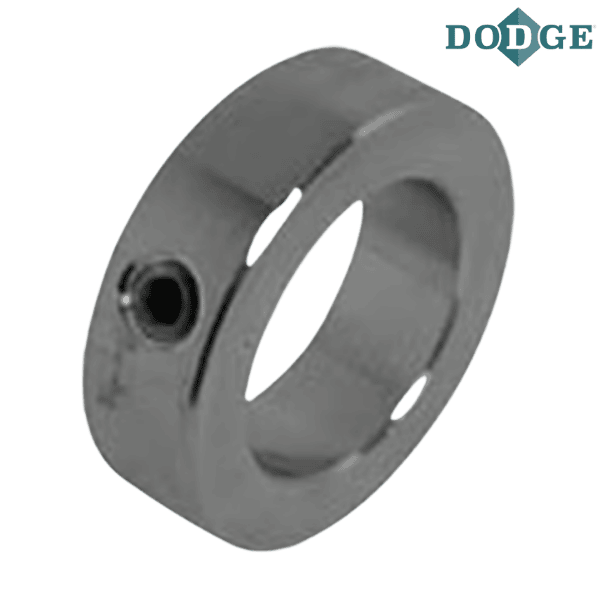

Item Number - 040016 DODGE - 1 1/8 SOLID STEEL COLLAR
Category - Shaft Collar (Solid Steel)
Shaft Size (inch) - 1.125
Description - 1 1/8 SOLID STEEL COLLAR
Part Number (Stainless) - 456235
Description (Stainless) - 1 1/8 SOLID S.S. COLLAR

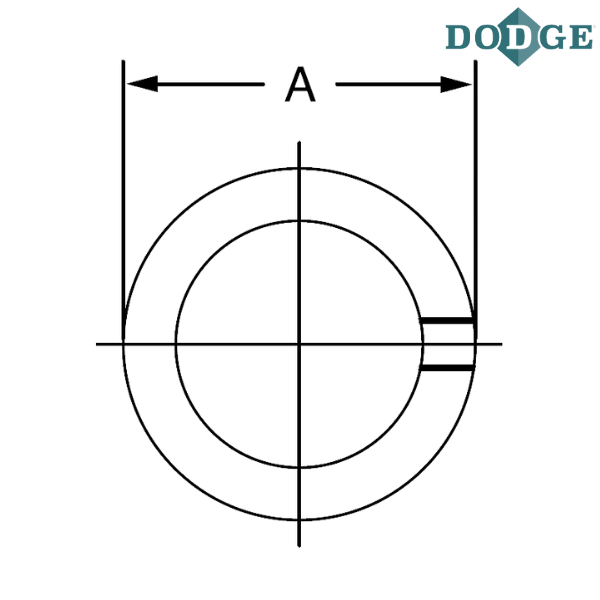

Outer Diameter (A) inch - 1.75

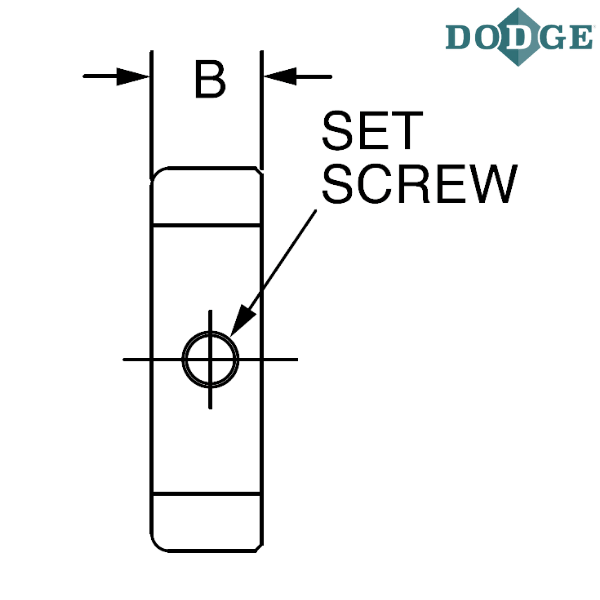

Width (B) inch - 0.63
Screw (inch) - 0.3125
Weight (lbs) - 0.2
Notes :
Steel is mild carbon steel.
Stainless is 300-series stainless.
All sizes are fitted with one setscrew.
** Images are for representation purposes only
