Description
Brand - DODGE
Item Number - 040009 DODGE - 11/16 SOLID STEEL COLLAR
Category - Shaft Collar (Solid Steel)
Shaft Size (inch) - 0.6875
Description - 11/16 SOLID STEEL COLLAR

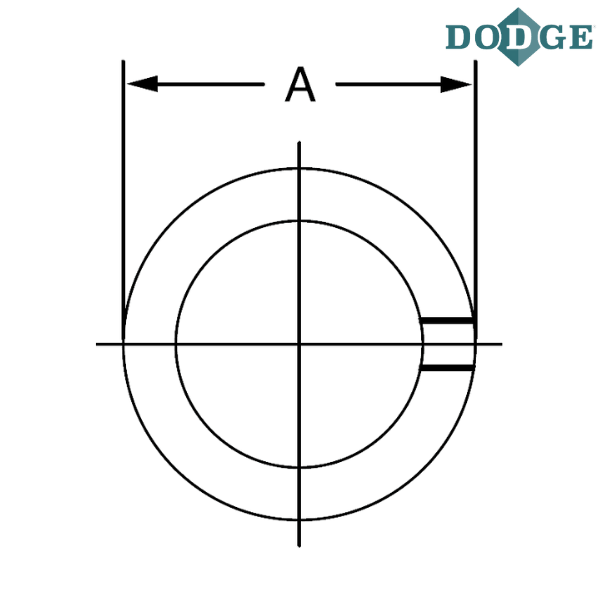

Outer Diameter (A) inch - 1.25

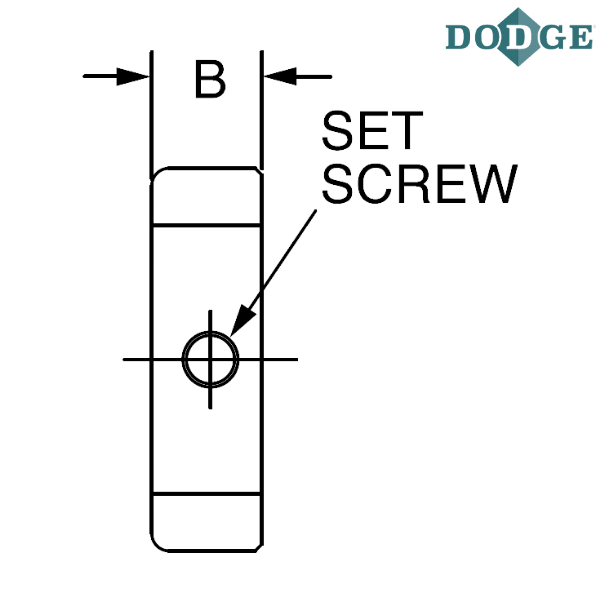

Width (B) inch - 0.56
Screw (inch) - 0.3125
Weight (lbs) - 0.1
Notes :
Steel is mild carbon steel.
Stainless is 300-series stainless.
All sizes are fitted with one setscrew.

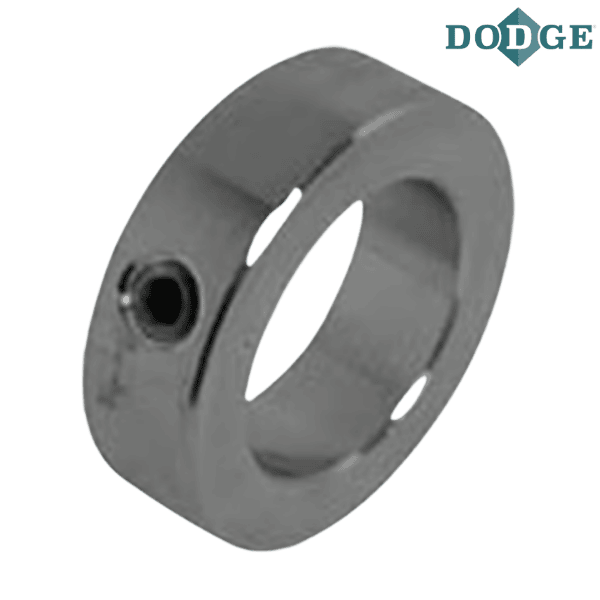

** Images are for representation purposes only
