Description
Brand - DODGE

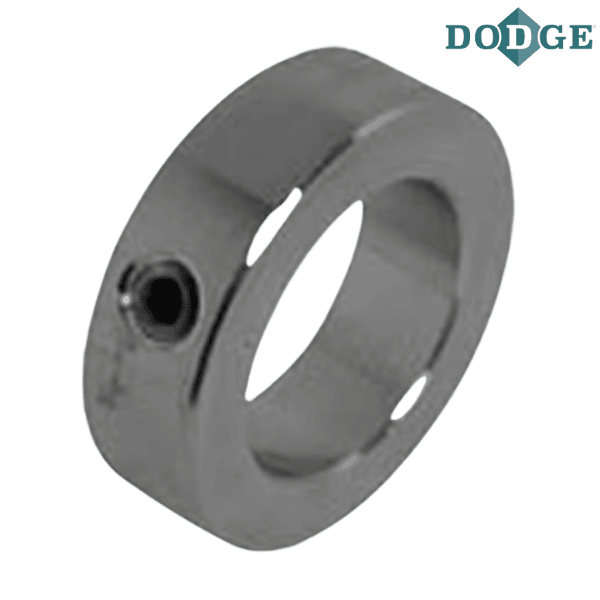

Item Number - 040005 DODGE - 7/16 SOLID STEEL COLLAR
Category - Shaft Collar (Solid Steel)
Shaft Size (inch) - 0.4375
Description - 7/16 SOLID STEEL COLLAR

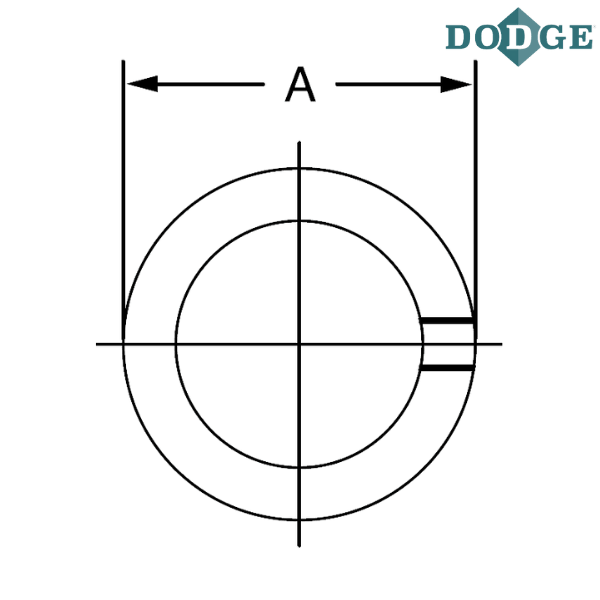

Outer Diameter (A) inch - 0.88

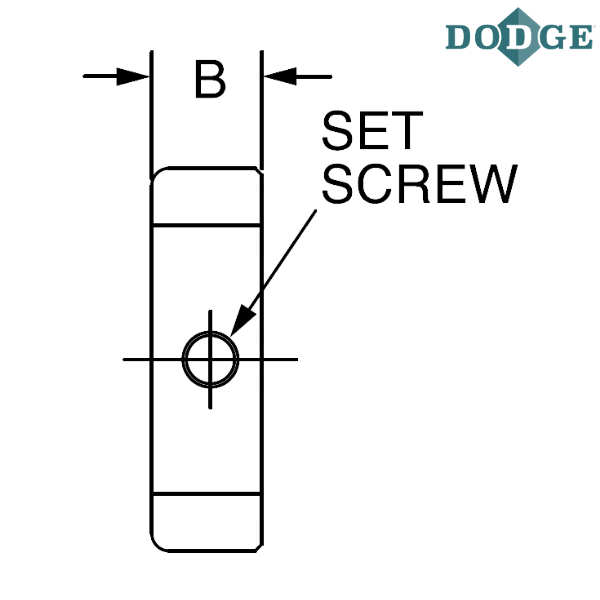

Width (B) inch - 0.44
Screw (inch) - 0.25
Weight (lbs) - 0.05
Notes :
Steel is mild carbon steel.
Stainless is 300-series stainless.
All sizes are fitted with one setscrew.
** Images are for representation purposes only
