Description
Brand - DODGE
Item Number - 039762 DODGE - H4S-511-USAF

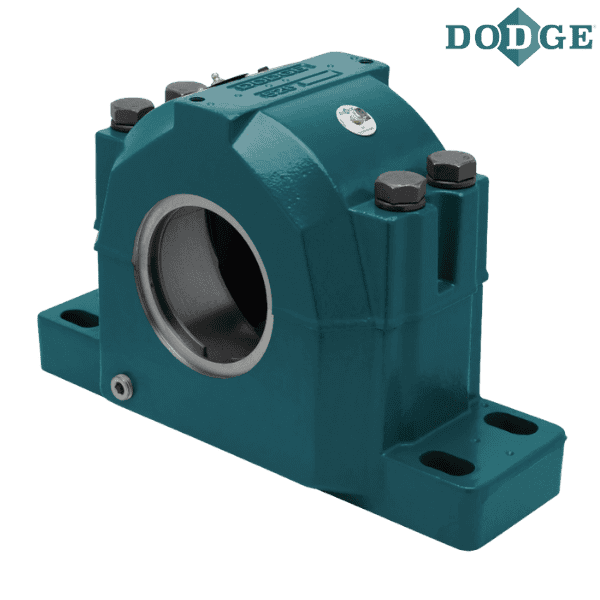

Category - USAF 500 Adapter Mount Pillow Block Housing (4-Bolt Through Housing)
Description - H4S-511-USAF
Shaft Size (S-1) inch - 1.9375
Approximate Weight (lbs) - 22.5
Housing - 511

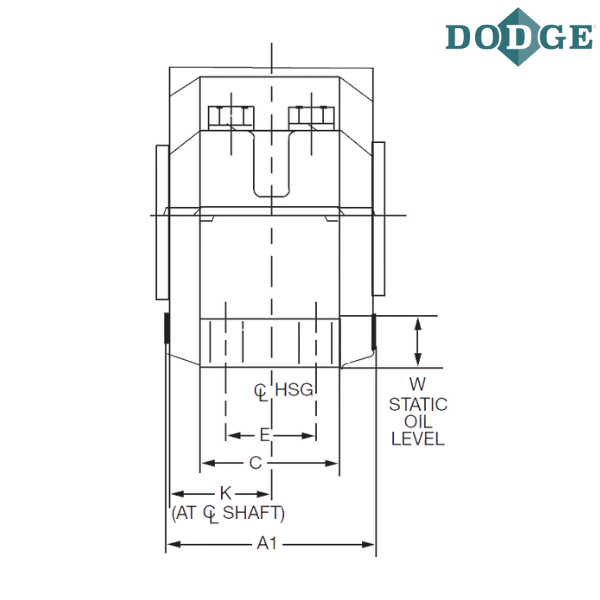

A1 (inch) - 4.25
Overall Length (B) inch - 9.63
C (inch) - 2.75
H (inch) - 1.03
Overall Height (J) inch - 5.25
K (inch) - 1.97
Base to Center Height (M) inch - 2.75
P (inch) - 5.78
Q (inch) - 1.2
S (inch) - 0.13
Static Oil Level (W) inch - 1.16
X (inch) - 1.94
Y (inch) - 0.83
Drain Hole Size - 1/8-27NPSI
Notes :
H4S - 4 Bolt Base Pillow Block, Cast Iron, Both Ends Open
5XX - For Adapter Mounted 22200K Series Bearing
USAF - UNIFIED SAF Pillow Block (Inch Dimensions)
** Images are for representation purposes only
