039673 DODGE - CH2S-518-USAF

Brand - DODGE
Item Number - 039673 DODGE - CH2S-518-USAF
Category - USAF 500 Adapter Mount Pillow Block Housing (2-Bolt Closed End Housing)
Description - CH2S-518-USAF
Shaft Size (S-1) inch - 3.1875
Approximate Weight (lbs) - 40.7
Housing - 518

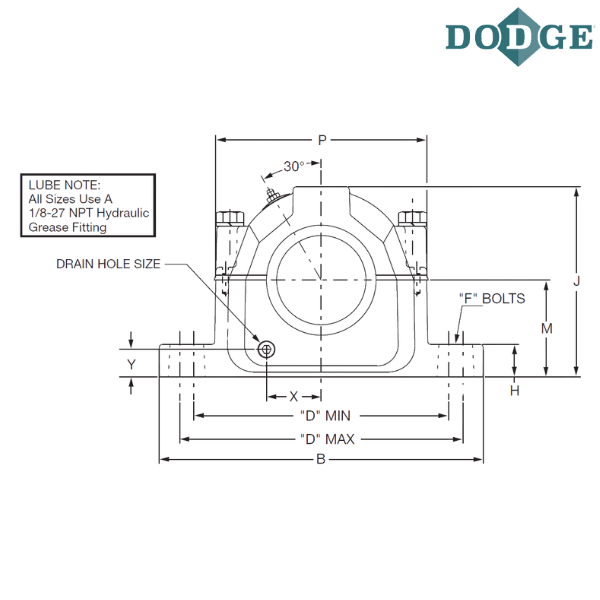

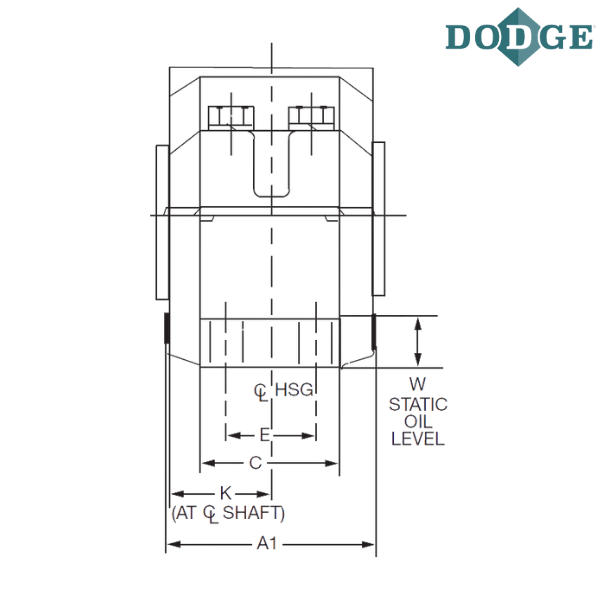

A1 (inch) - 6.16
Overall Length (B) inch - 13.63
C (inch) - 3.88
Bolt to Bolt Minimum Distance (D min) inch - 10.25
Bolt to Bolt Maximum Distance (D max) inch - 11.75
E (inch) - 2.13
F-Bolt Diameter (inch) - 0.75
H (inch) - 1.44
Overall Height (J) inch - 7.75
K (inch) - 2.84
Base to Center Height (M) inch - 4
P (inch) - 8.66
Q (inch) - 1.72
S (inch) - 0.19
Static Oil Level (W) inch - 1.47
X (inch) - 2.5
Y (inch) - 1.13
Drain Hole Size - 3/8-18NPSF

Notes :
CH2S - 2 Bolt Base Pillow Block, Cast Iron, One End Closed
5XX - For Adapter Mounted 22200K Series Bearing
USAF - UNIFIED SAF Pillow Block (Inch Dimensions)

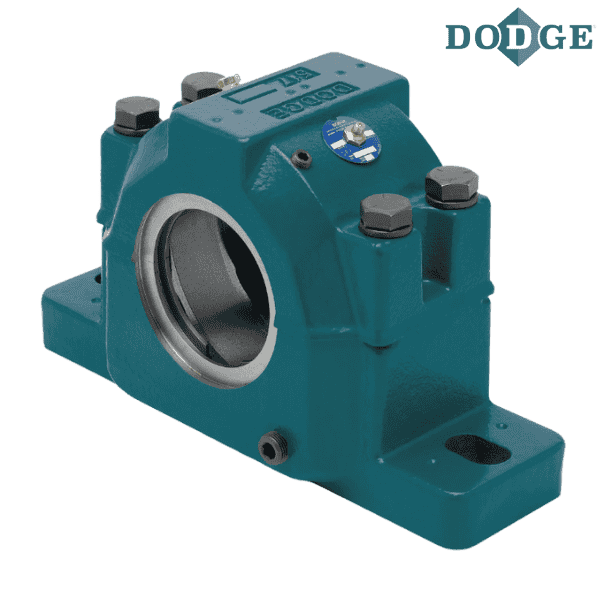

** Images are for representation purposes only
