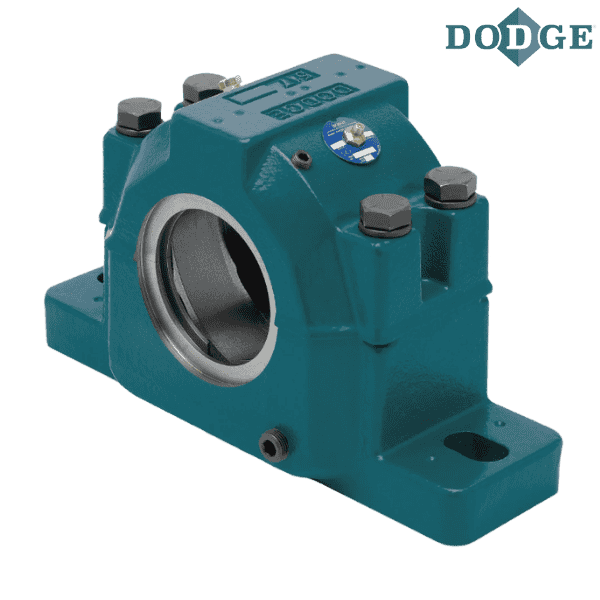

039597 DODGE - CP2B520-USAF-308TT

Brand - DODGE
Item Number - 039597 DODGE - CP2B520-USAF-308TT
Category - USAF 500 Adapter Mount Pillow Block with TRIPLE-TECT Seal Assembly (500 Series Cast Closed Housing)
Shaft Diameter (S-1) inch - 3.5
Description - CP2B520-USAF-308TT
Housing Item Number - 039675 DODGE - CH2S-520-USAF
Bearing Item Number - 422009 DODGE - BRG22220KC3
Dynamic Capacity (C) lbf - 96500
Maximum RPM (Grease) - 2200
SNW Item Number - 046362 DODGE - H320-SNW-308
TRIPLE-TECT Seal Item Number - 043550 DODGE - 46TT308
Drop in TRIPLE-TECT Seal Item Number - 039860 DODGE - 46TTDN308
LER Seal Item Number * - 042522 DODGE - 46LER308
Auxiliary (Taconite) Seal Item Number - 040919 DODGE - 46AUX308

Notes :
CP2B - 2 Bolt Base Pillow Block, Cast Iron, One End Closed
5XX - For Adapter Mounted 22200K Series Bearing
USAF - UNIFIED SAF Pillow Block (Inch Dimensions)
308 - 3 1/2”
TT - TRIPLE-TECT
CH2S - 2 Bolt Base Pillow Block, Cast Iron, One End Closed
5XX - For Adapter Mounted 23000K Series Bearing
BRG - Roller Bearing
222 - 22200 Series
K - Tapered Adapter Sleeve Mounting. Otherwise Bearing Has Cylindrical Bore for Direct Mounting.
C3 - Bearing clearance

* LER seals are made from Aluminum

** Images are for representation purposes only
