039593 DODGE - CP2B518-USAF-303TT

Brand - DODGE
Item Number - 039593 DODGE - CP2B518-USAF-303TT

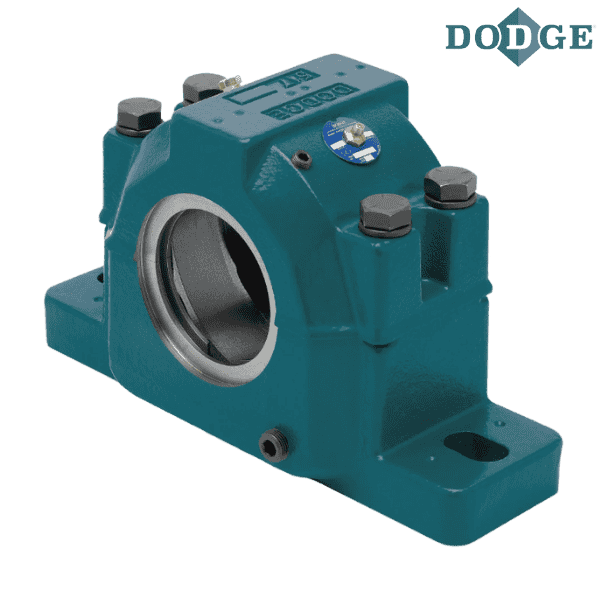

Category - USAF 500 Adapter Mount Pillow Block with TRIPLE-TECT Seal Assembly (500 Series Cast Closed Housing)

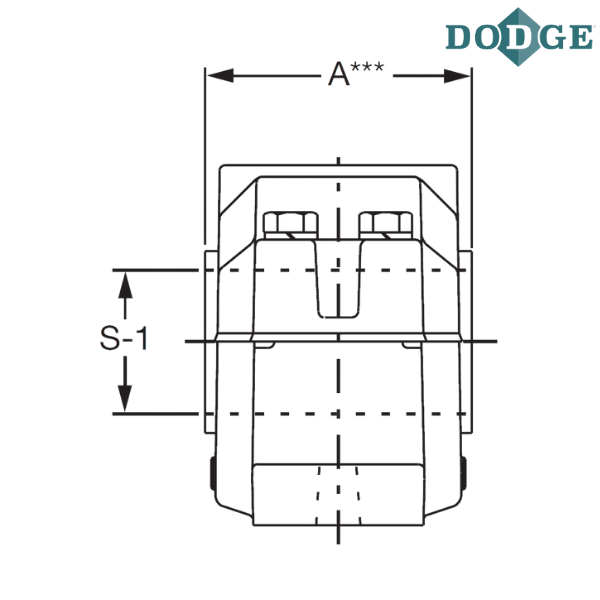

Shaft Diameter (S-1) inch - 3.1875
Description - CP2B518-USAF-303TT
Housing Item Number - 039673 DODGE - CH2S-518-USAF
Bearing Item Number - 422007 DODGE - BRG22218KC3
Dynamic Capacity (C) lbf - 78000
Maximum RPM (Grease) - 2600
SNW Item Number - 046360 DODGE - H318-SNW-303
TRIPLE-TECT Seal Item Number - 043548 DODGE - 34TT303
Drop in TRIPLE-TECT Seal Item Number - 039858 DODGE - 34TTDN303
LER Seal Item Number * - 042520 DODGE - 34LER303
Auxiliary (Taconite) Seal Item Number - 040892 DODGE - 34AUX303

Notes :
CP2B - 2 Bolt Base Pillow Block, Cast Iron, One End Closed
5XX - For Adapter Mounted 22200K Series Bearing
USAF - UNIFIED SAF Pillow Block (Inch Dimensions)
303 - 3 3/16”
TT - TRIPLE-TECT
CH2S - 2 Bolt Base Pillow Block, Cast Iron, One End Closed
5XX - For Adapter Mounted 23000K Series Bearing
BRG - Roller Bearing
222 - 22200 Series
K - Tapered Adapter Sleeve Mounting. Otherwise Bearing Has Cylindrical Bore for Direct Mounting.
C3 - Bearing clearance

* LER seals are made from Aluminum

** Images are for representation purposes only
