039589 DODGE - CP2B517-USAF-215TT

Brand - DODGE
Item Number - 039589 DODGE - CP2B517-USAF-215TT

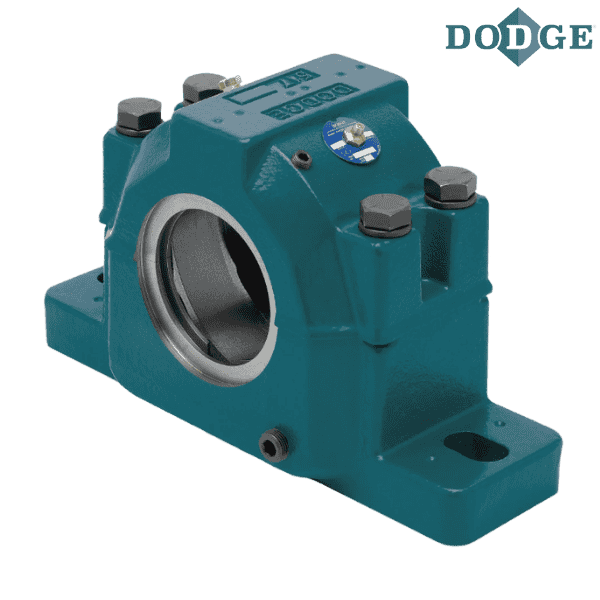

Category - USAF 500 Adapter Mount Pillow Block with TRIPLE-TECT Seal Assembly (500 Series Cast Closed Housing)
Shaft Diameter (S-1) inch - 2.9375
Description - CP2B517-USAF-215TT
Housing Item Number - 039508 DODGE - CH2S-517-USAF
Bearing Item Number - 422005 DODGE - BRG22217KC3
Dynamic Capacity (C) lbf - 68000
Maximum RPM (Grease) - 3000
SNW Item Number - 046358 DODGE - H317-SNW-215
TRIPLE-TECT Seal Item Number - 043546 DODGE - 28TT215
Drop in TRIPLE-TECT Seal Item Number - 039530 DODGE - 28TTDN215
LER Seal Item Number * - 042518 DODGE - 28LER215
Auxiliary (Taconite) Seal Item Number - 042382 DODGE - 28AUX215

Notes :
CP2B - 2 Bolt Base Pillow Block, Cast Iron, One End Closed
5XX - For Adapter Mounted 22200K Series Bearing
USAF - UNIFIED SAF Pillow Block (Inch Dimensions)
215 - 2 15/16”
TT - TRIPLE-TECT
CH2S - 2 Bolt Base Pillow Block, Cast Iron, One End Closed
5XX - For Adapter Mounted 23000K Series Bearing
BRG - Roller Bearing
222 - 22200 Series
K - Tapered Adapter Sleeve Mounting. Otherwise Bearing Has Cylindrical Bore for Direct Mounting.
C3 - Bearing clearance

* LER seals are made from Aluminum

** Images are for representation purposes only
