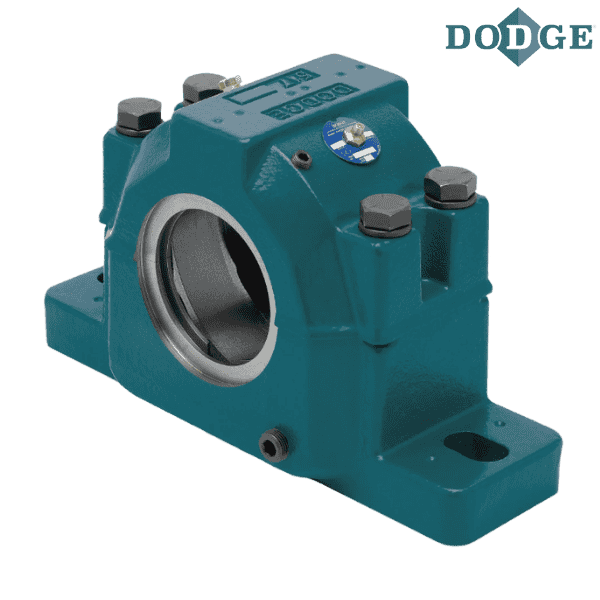

039585 DODGE - CP2B516-USAF-211TT

Brand - DODGE
Item Number - 039585 DODGE - CP2B516-USAF-211TT
Category - USAF 500 Adapter Mount Pillow Block with TRIPLE-TECT Seal Assembly (500 Series Cast Closed Housing)
Shaft Diameter (S-1) inch - 2.6875
Description - CP2B516-USAF-211TT
Housing Item Number - 039671 DODGE - CH2S-516-USAF
Bearing Item Number - 422003 DODGE - BRG22216KC3
Dynamic Capacity (C) lbf - 56000
Maximum RPM (Grease) - 3200
SNW Item Number - 046356 DODGE - H316-SNW-211
TRIPLE-TECT Seal Item Number - 043544 DODGE - 24TT211
Drop in TRIPLE-TECT Seal Item Number - 039855 DODGE - 24TTDN211
LER Seal Item Number * - 042516 DODGE - 24LER211
Auxiliary (Taconite) Seal Item Number - 042381 DODGE - 24AUX211

Notes :
CP2B - 2 Bolt Base Pillow Block, Cast Iron, One End Closed
5XX - For Adapter Mounted 22200K Series Bearing
USAF - UNIFIED SAF Pillow Block (Inch Dimensions)
211 - 2 11/16”
TT - TRIPLE-TECT
CH2S - 2 Bolt Base Pillow Block, Cast Iron, One End Closed
5XX - For Adapter Mounted 23000K Series Bearing
BRG - Roller Bearing
222 - 22200 Series
K - Tapered Adapter Sleeve Mounting. Otherwise Bearing Has Cylindrical Bore for Direct Mounting.
C3 - Bearing clearance

* LER seals are made from Aluminum

** Images are for representation purposes only
