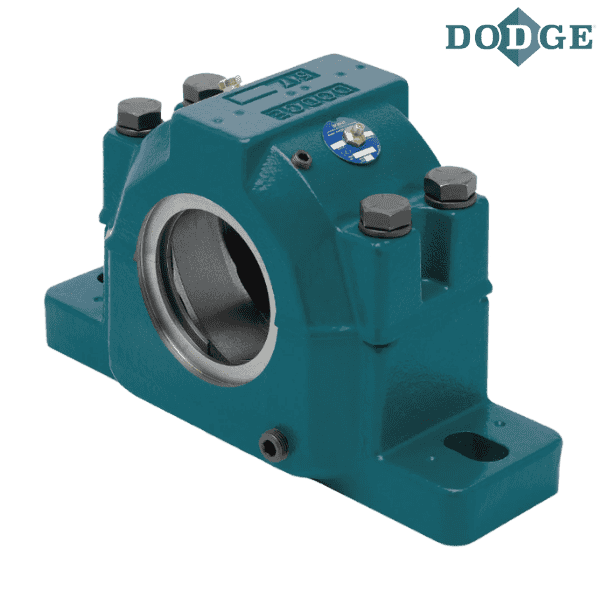

039583 DODGE - CP2B515-USAF-208TT

Brand - DODGE
Item Number - 039583 DODGE - CP2B515-USAF-208TT
Category - USAF 500 Adapter Mount Pillow Block with TRIPLE-TECT Seal Assembly (500 Series Cast Closed Housing)
Shaft Diameter (S-1) inch - 2.5
Description - CP2B515-USAF-208TT
Housing Item Number - 039544 DODGE - CH2S-515-USAF
Bearing Item Number - 422001 DODGE - BRG22215KC3
Dynamic Capacity (C) lbf - 48000
Maximum RPM (Grease) - 3400
SNW Item Number - 046355 DODGE - H315-SNW-208
TRIPLE-TECT Seal Item Number - 043543 DODGE - 20TT208
Drop in TRIPLE-TECT Seal Item Number - 039854 DODGE - 20TTDN208
LER Seal Item Number * - 042515 DODGE - 20LER208
Auxiliary (Taconite) Seal Item Number - 040890 DODGE - 20AUX208

Notes :
CP2B - 2 Bolt Base Pillow Block, Cast Iron, One End Closed
5XX - For Adapter Mounted 22200K Series Bearing
USAF - UNIFIED SAF Pillow Block (Inch Dimensions)
208 - 2 1/2”
TT - TRIPLE-TECT
CH2S - 2 Bolt Base Pillow Block, Cast Iron, One End Closed
5XX - For Adapter Mounted 23000K Series Bearing
BRG - Roller Bearing
222 - 22200 Series
K - Tapered Adapter Sleeve Mounting. Otherwise Bearing Has Cylindrical Bore for Direct Mounting.
C3 - Bearing clearance

* LER seals are made from Aluminum

** Images are for representation purposes only
