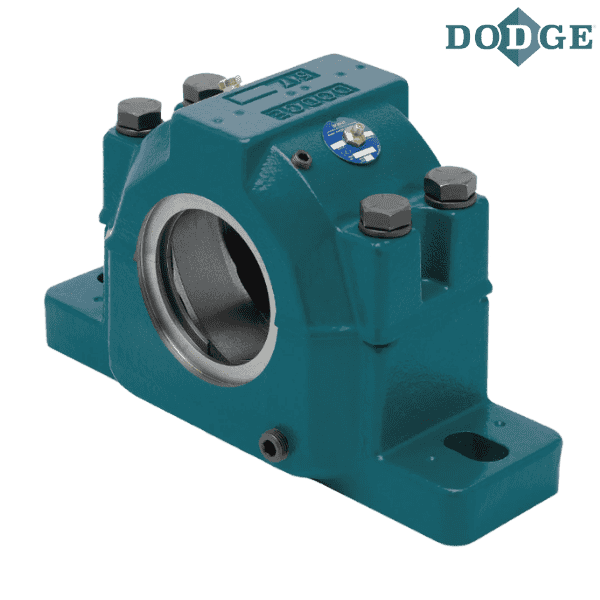

039581 DODGE - CP2B515-USAF-207TT

Brand - DODGE
Item Number - 039581 DODGE - CP2B515-USAF-207TT
Category - USAF 500 Adapter Mount Pillow Block with TRIPLE-TECT Seal Assembly (500 Series Cast Closed Housing)
Shaft Diameter (S-1) inch - 2.4375
Description - CP2B515-USAF-207TT
Housing Item Number - 039544 DODGE - CH2S-515-USAF
Bearing Item Number - 422001 DODGE - BRG22215KC3
Dynamic Capacity (C) lbf - 48000
Maximum RPM (Grease) - 3400
SNW Item Number - 046354 DODGE - H315-SNW-207
TRIPLE-TECT Seal Item Number - 043542 DODGE - 20TT207
Drop in TRIPLE-TECT Seal Item Number - 039538 DODGE - 20TTDN207
LER Seal Item Number * - 042514 DODGE - 20LER207
Auxiliary (Taconite) Seal Item Number - 042380 DODGE - 20AUX207

Notes :
CP2B - 2 Bolt Base Pillow Block, Cast Iron, One End Closed
5XX - For Adapter Mounted 22200K Series Bearing
USAF - UNIFIED SAF Pillow Block (Inch Dimensions)
207 - 2 7/16”
TT - TRIPLE-TECT
CH2S - 2 Bolt Base Pillow Block, Cast Iron, One End Closed
5XX - For Adapter Mounted 23000K Series Bearing
BRG - Roller Bearing
222 - 22200 Series
K - Tapered Adapter Sleeve Mounting. Otherwise Bearing Has Cylindrical Bore for Direct Mounting.
C3 - Bearing clearance

* LER seals are made from Aluminum

** Images are for representation purposes only
