039578 DODGE - CP2B513-USAF-203TT

Brand - DODGE
Item Number - 039578 DODGE - CP2B513-USAF-203TT

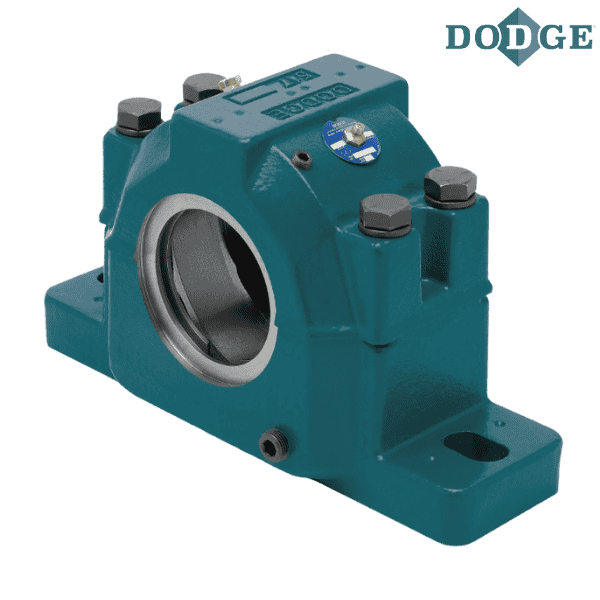

Category - USAF 500 Adapter Mount Pillow Block with TRIPLE-TECT Seal Assembly (500 Series Cast Closed Housing)

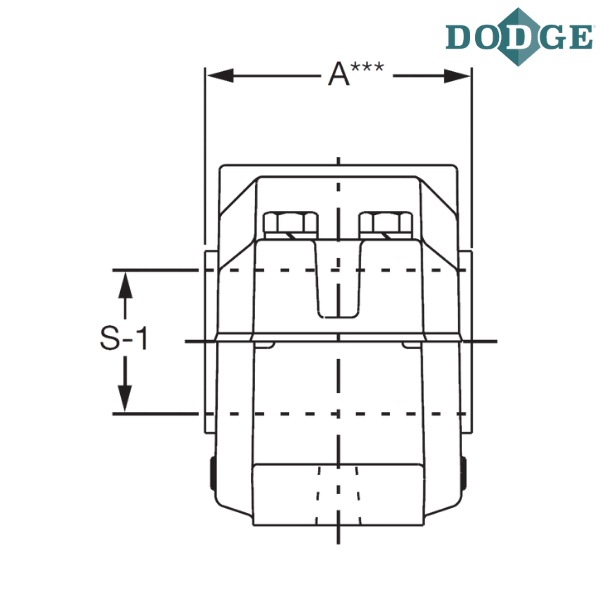

Shaft Diameter (S-1) inch - 2.1875
Description - CP2B513-USAF-203TT
Housing Item Number - 039668 DODGE - CH2S-513-USAF
Bearing Item Number - 422124 DODGE - BRG22213KC3
Dynamic Capacity (C) lbf - 45500
Maximum RPM (Grease) - 3800
SNW Item Number - 046353 DODGE - H313-SNW-203
TRIPLE-TECT Seal Item Number - 043541 DODGE - 14TT203
Drop in TRIPLE-TECT Seal Item Number - 039853 DODGE - 14TTDN203
LER Seal Item Number * - 042513 DODGE - 14LER203
Auxiliary (Taconite) Seal Item Number - 041688 DODGE - 14AUX203

Notes :
CP2B - 2 Bolt Base Pillow Block, Cast Iron, One End Closed
5XX - For Adapter Mounted 22200K Series Bearing
USAF - UNIFIED SAF Pillow Block (Inch Dimensions)
203 - 2 3/16”
TT - TRIPLE-TECT
CH2S - 2 Bolt Base Pillow Block, Cast Iron, One End Closed
5XX - For Adapter Mounted 23000K Series Bearing
BRG - Roller Bearing
222 - 22200 Series
K - Tapered Adapter Sleeve Mounting. Otherwise Bearing Has Cylindrical Bore for Direct Mounting.
C3 - Bearing clearance

* LER seals are made from Aluminum

** Images are for representation purposes only
