039576 DODGE - CP2B510--USAF-111TT

Brand - DODGE
Item Number - 039576 DODGE - CP2B510--USAF-111TT
Category - USAF 500 Adapter Mount Pillow Block with TRIPLE-TECT Seal Assembly (500 Series Cast Closed Housing)

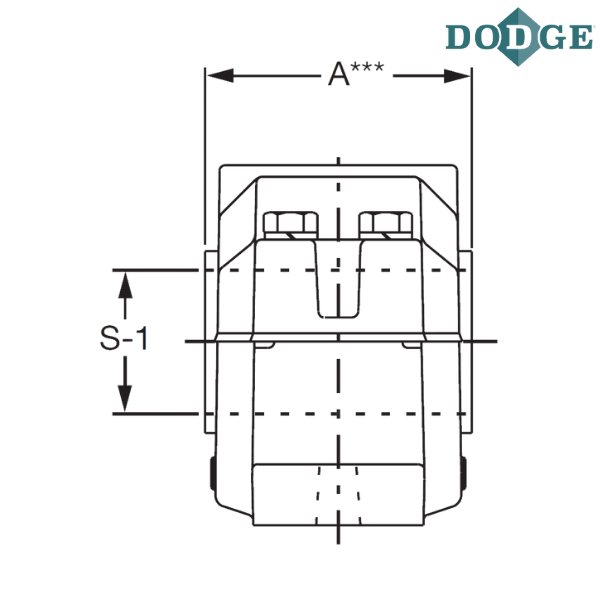

Shaft Diameter (S-1) inch - 1.6875
Description - CP2B510--USAF-111TT
Housing Item Number - 039666 DODGE - CH2S-510-USAF
Bearing Item Number - 422137 DODGE - BRG22210KC3
Dynamic Capacity (C) lbf - 26000
Maximum RPM (Grease) - 5300
SNW Item Number - 046351 DODGE - H310-SNW-111
TRIPLE-TECT Seal Item Number - 043579 DODGE - 10TT111
LER Seal Item Number * - 042199 DODGE - 10LER111

Notes :
CP2B - 2 Bolt Base Pillow Block, Cast Iron, One End Closed
5XX - For Adapter Mounted 22200K Series Bearing
USAF - UNIFIED SAF Pillow Block (Inch Dimensions)
111 - 1 11/16”
TT - TRIPLE-TECT
CH2S - 2 Bolt Base Pillow Block, Cast Iron, One End Closed
5XX - For Adapter Mounted 23000K Series Bearing
BRG - Roller Bearing
222 - 22200 Series
K - Tapered Adapter Sleeve Mounting. Otherwise Bearing Has Cylindrical Bore for Direct Mounting.
C3 - Bearing clearance

* LER seals are made from Aluminum

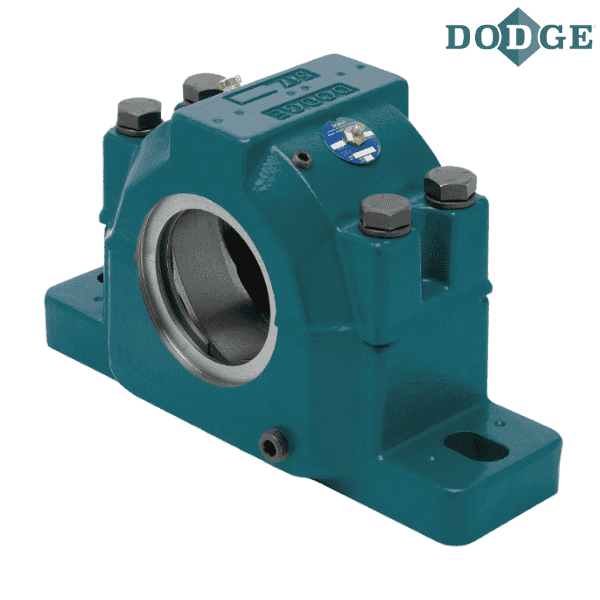

** Images are for representation purposes only
