039575 DODGE - CP2B509-USAF-107TT

Brand - DODGE
Item Number - 039575 DODGE - CP2B509-USAF-107TT

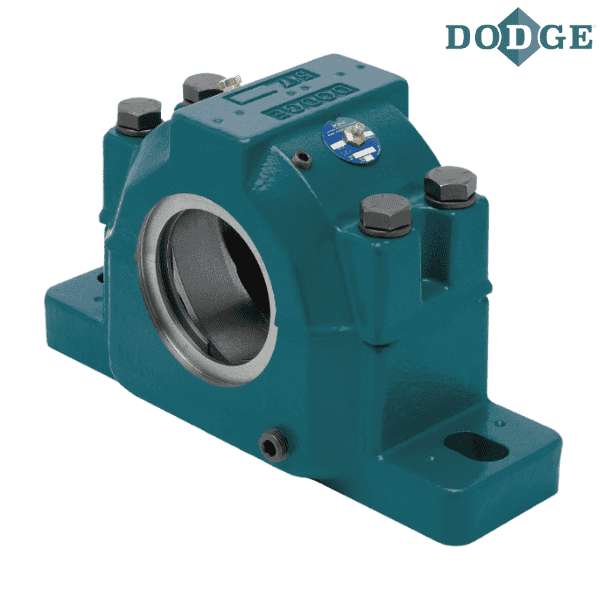

Category - USAF 500 Adapter Mount Pillow Block with TRIPLE-TECT Seal Assembly (500 Series Cast Closed Housing)
Shaft Diameter (S-1) inch - 1.4375
Description - CP2B509-USAF-107TT
Housing Item Number - 039665 DODGE - CH2S-509-USAF
Bearing Item Number - 422134 DODGE - BRG22209KC3
Dynamic Capacity (C) lbf - 24500
Maximum RPM (Grease) - 5600
SNW Item Number - 046350 DODGE - H309-SNW-107
TRIPLE-TECT Seal Item Number - 043578 DODGE - 08TT107
LER Seal Item Number * - 042193 DODGE - 08LER107

Notes :
CP2B - 2 Bolt Base Pillow Block, Cast Iron, One End Closed
5XX - For Adapter Mounted 22200K Series Bearing
USAF - UNIFIED SAF Pillow Block (Inch Dimensions)
107 - 1 7/16”
TT - TRIPLE-TECT
CH2S - 2 Bolt Base Pillow Block, Cast Iron, One End Closed
5XX - For Adapter Mounted 23000K Series Bearing
BRG - Roller Bearing
222 - 22200 Series
K - Tapered Adapter Sleeve Mounting. Otherwise Bearing Has Cylindrical Bore for Direct Mounting.
C3 - Bearing clearance

* LER seals are made from Aluminum

** Images are for representation purposes only
