039508 DODGE - CH2S-517-USAF

Brand - DODGE
Item Number - 039508 DODGE - CH2S-517-USAF
Category - USAF 500 Adapter Mount Pillow Block Housing (2-Bolt Closed End Housing)
Description - CH2S-517-USAF
Shaft Size (S-1) inch - 2.9375, 3.0
Approximate Weight (lbs) - 37
Housing - 517

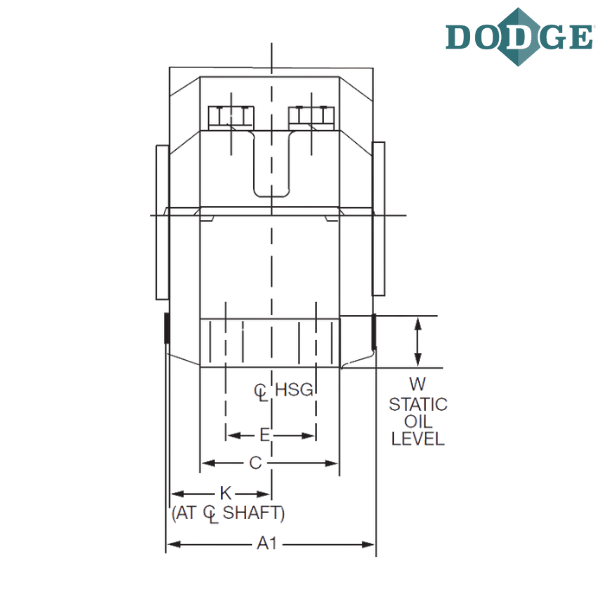

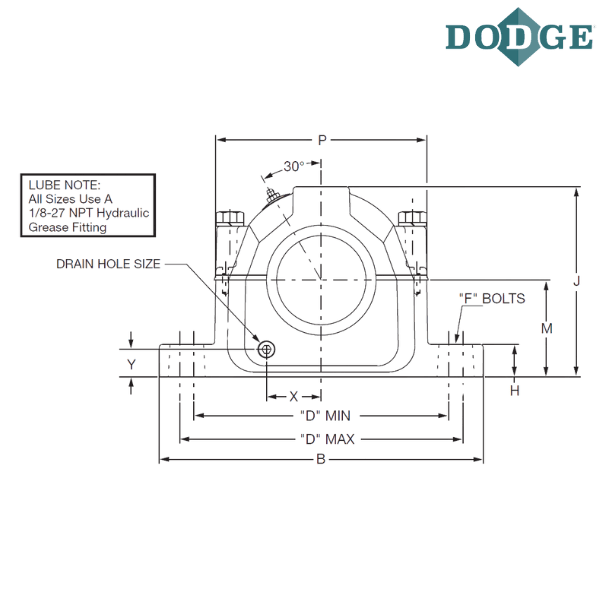

A1 (inch) - 5.39
Overall Length (B) inch - 12.59
C (inch) - 3.5
Bolt to Bolt Minimum Distance (D min) inch - 9.88
Bolt to Bolt Maximum Distance (D max) inch - 11
E (inch) - 2.13
F-Bolt Diameter (inch) - 0.75
H (inch) - 1.25
Overall Height (J) inch - 7.38
K (inch) - 2.47
Base to Center Height (M) inch - 3.75
P (inch) - 8.19
Q (inch) - 1.5
S (inch) - 0.19
Static Oil Level (W) inch - 1.38
X (inch) - 2.13
Y (inch) - 1.06
Drain Hole Size - 3/8-18NPSF

Notes :

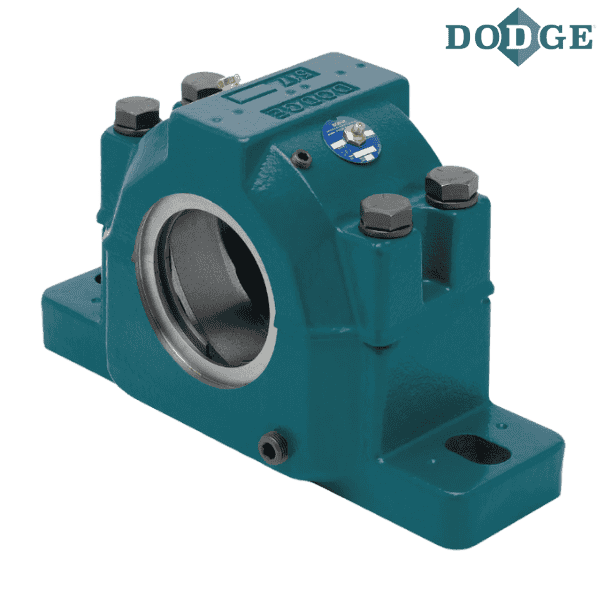

CH2S - 2 Bolt Base Pillow Block, Cast Iron, One End Closed
5XX - For Adapter Mounted 22200K Series Bearing
USAF - UNIFIED SAF Pillow Block (Inch Dimensions)

** Images are for representation purposes only
