039355 DODGE - P2B308-USAF-115TT

Brand - DODGE
Item Number - 039355 DODGE - P2B308-USAF-115TT
Category - USAF 300 Direct Mount Pillow Block With TRIPLE-TECT Seal Assembly

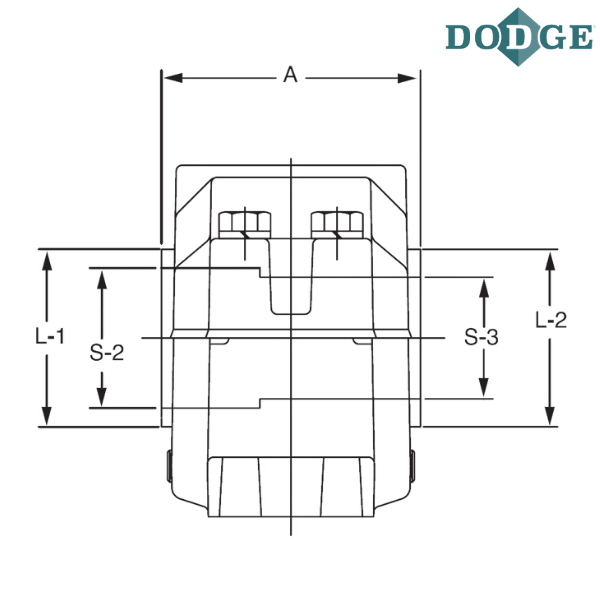

Shaft Diameter (S-2) inch - 1.9375
Shaft Diameter (S-3) inch - 1.4375
Bore Diameter (mm) - 40
Description - P2B308-USAF-115TT
Housing Item Number - 039717 DODGE - H2S-308-USAF
Bearing Item Number - 423124 DODGE - BRG22308C3
Dynamic Capacity (C) lbs - 35500
Maximum Rpm (Grease) - 4300
Shaft Locknut Item Number - 407305 DODGE - N08
Lockwasher Item Number - 419151 DODGE - W08
TRIPLE-TECT Seal Item Number (S-2) - 043540 DODGE - 12TT115
TRIPLE-TECT Seal Item Number (S-3) - 043578 DODGE - 08TT107
LER Seal Item Number (S-2)* - 042512 DODGE - 12LER115
LER Seal Item Number (S-3)* - 042193 DODGE - 08LER107
End Cover Item Number - 040700 DODGE - EC-08
Housing - 308
A1 (inch) - 4.06
Overall Length (B) inch - 8.25
C (inch) - 2.34
Bolt to Bolt Minimum Distance (D min) inch - 6.5
Bolt to Bolt Maximum Distance (D max) inch - 7
F-Bolt Diameter (inch) - 0.5
H (inch) - 1.03
Overall Height (J) inch - 4.58
K (inch) - 1.88
Base to Center Height (M) inch - 2.5
P (inch) - 5.13
Q (inch) *** - 1.17
S (inch) **** - 0.13
Static Oil Level (W) inch - 1.19
X (inch) - 1.25
Y (inch) - 0.81
Drain Hole Size - 1/8-27NPSI

Notes :
P2B - 2 Bolt Base Pillow Block, Cast Iron, Both Ends Open
3XX - For Direct Mount 22300 Series Bearing
USAF - UNIFIED SAF Pillow Block (Inch Dimensions)
115 - 1-15/16”
H2S - 2 Bolt Base Pillow Block, Cast Iron, Both Ends Open
3XX - For Direct Mount 22300 Series Bearing
BRG - Roller Bearing
222 - 22200 Series
C3 - Bearing clearance

* LER seals are made from Aluminum
*** Distance shaft should extend beyond housing centerline if pillow block is closed end style
**** Non-expansion bearing offset from centerline. For expansion bearing S = 0

***** Images are for representation purposes only
