039226 DODGE - CH4S-052-USAF

Brand - DODGE
Item Number - 039226 DODGE - CH4S-052-USAF

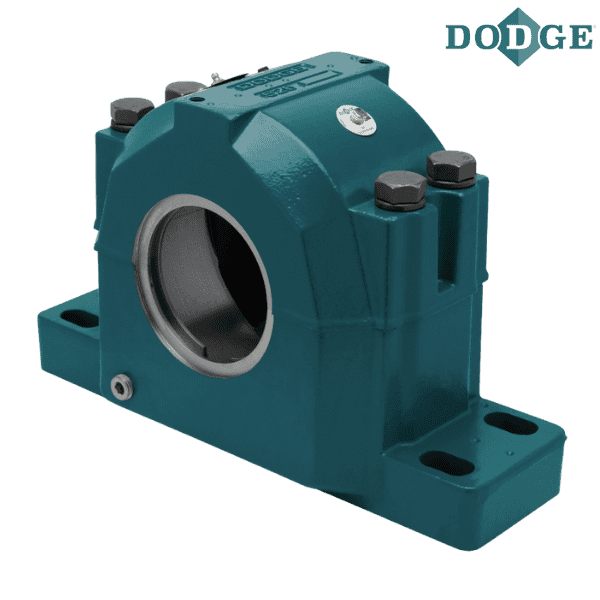

Category - USAF 500 Adapter Mount Pillow Block Housing (4-Bolt Closed End Housing)
Description - CH4S-52-USAF
Shaft Size (S-1) inch - 9.4375, 9.5
Approximate Weight (lbs) - 590.4
Housing - 052

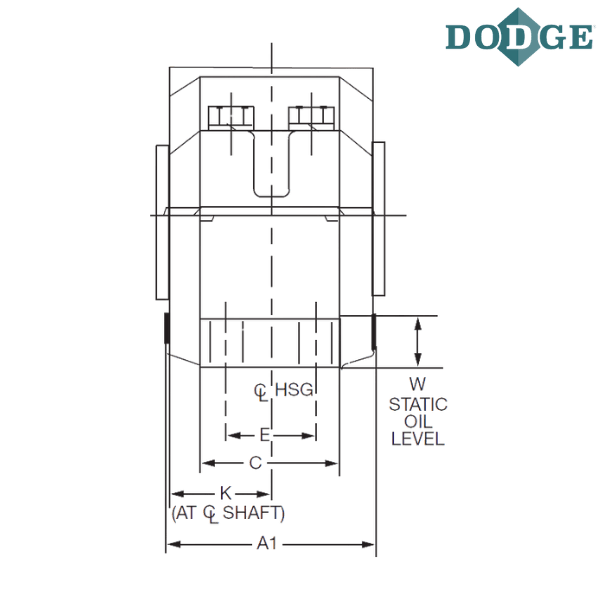

A1 (inch) - 12.3
Overall Length (B) inch - 32.75
C (inch) - 8.88
Bolt to Bolt Minimum Distance (D min) inch - 24.75
Bolt to Bolt Maximum Distance (D max) inch - 27.88
E (inch) - 5.25
F-Bolt Diameter (inch) - 1.5
H (inch) - 3.75
Overall Height (J) inch - 18.88
K (inch) - 5.81
Base to Center Height (M) inch - 9.5
P (inch) - 21.25
Q (inch) - 3.88
S (inch) - 0
Static Oil Level (W) inch - 2.89

Notes :
CH4S - 4 Bolt Base Pillow Block, Cast Iron, One End Closed
0XX - For Adapter Mounted 23000K Series Bearing
USAF - UNIFIED SAF Pillow Block (Inch Dimensions)

** Images are for representation purposes only
