Description
Brand - DODGE

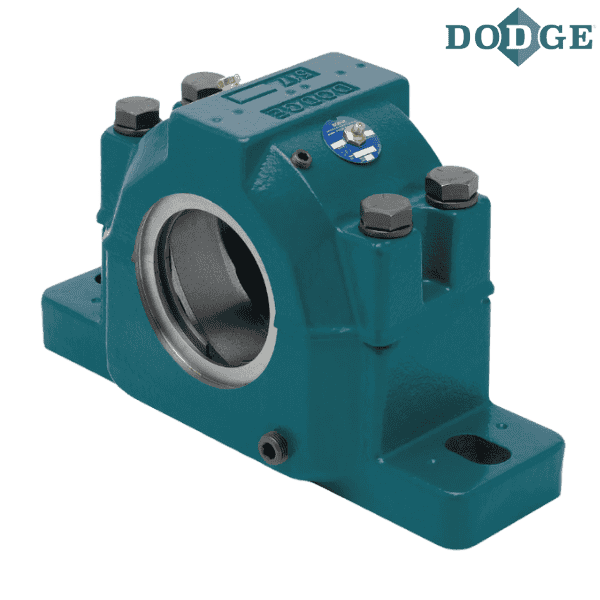

Item Number - 039105 DODGE - P2B515-USAF-208TTAH
Category - USAF 500 Air Handling Pillow Blocks with TRIPLE-TECT Seals
Shaft Diameter (S-1) inch - 2.5
Description - P2B515-USAF-208TTAH
Housing W/ Stab Ring Item Number - 044000 DODGE - H2S-515-USAF
Bearing Item Number - 422984 DODGE - BRG22215KC3AH
Dynamic Capacity (C) lbf - 48000
Maximum RPM (Grease) - 3400
SNW Item Number - 046355 DODGE - H315-SNW-208
TRIPLE-TECT Seal Item Number - 043543 DODGE - 20TT208
End Cover Item Number - 040704 DODGE - EC20
Notes :
P2B - 2 Bolt Base Pillow Block, Cast Iron, Both Ends Open
5XX - For Adapter Mounted 22200K Series Bearing
USAF - UNIFIED SAF Pillow Block (Inch Dimensions)
208 - 2-1/2”
TT - TRIPLE-TECT
AH - Air Handling
H2S - 2 Bolt Base Pillow Block, Cast Iron, Both Ends Open
5XX - For Adapter Mounted 22200K Series Bearing
BRG - Roller Bearing
222 - 22200 Series
K - Tapered Adapter Sleeve Mounting. Otherwise Bearing Has Cylindrical Bore for Direct Mounting
C3 - Bearing clearance
** Images are for representation purposes only
