Description
Brand - DODGE
Item Number - 039100 DODGE - P2B509-USAF-107TTAH
Category - USAF 500 Air Handling Pillow Blocks with TRIPLE-TECT Seals

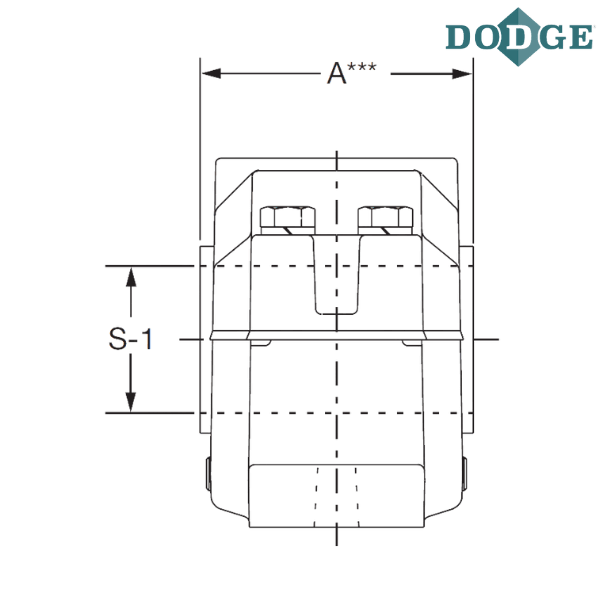

Shaft Diameter (S-1) inch - 1.4375
Description - P2B509-USAF-107TTAH
Housing W/ Stab Ring Item Number - 043995 DODGE - H2S-509-USAF
Bearing Item Number - 422980 DODGE - BRG22209KC3AH
Dynamic Capacity (C) lbf - 24500
Maximum RPM (Grease) - 5600
SNW Item Number - 046350 DODGE - H309-SNW-107
TRIPLE-TECT Seal Item Number - 043578 DODGE - 08TT107
End Cover Item Number - 040700 DODGE - EC08
Notes :
P2B - 2 Bolt Base Pillow Block, Cast Iron, Both Ends Open
5XX - For Adapter Mounted 22200K Series Bearing
USAF - UNIFIED SAF Pillow Block (Inch Dimensions)
107 - 1-7/16”
TT - TRIPLE-TECT
AH - Air Handling
H2S - 2 Bolt Base Pillow Block, Cast Iron, Both Ends Open
5XX - For Adapter Mounted 22200K Series Bearing
BRG - Roller Bearing
222 - 22200 Series
K - Tapered Adapter Sleeve Mounting. Otherwise Bearing Has Cylindrical Bore for Direct Mounting
C3 - Bearing clearance

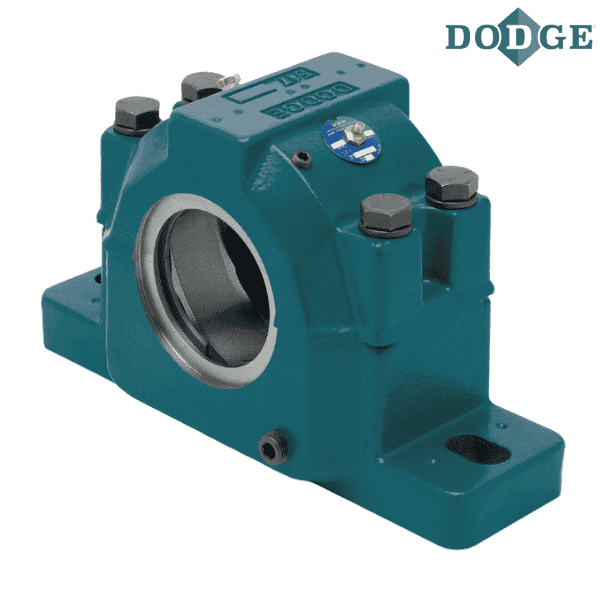

** Images are for representation purposes only
