039014 DODGE - LD-40x18-TUFR


Country Of Origin: USA
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - DODGE
Item Number - 039014 DODGE - LD-40x18-TUFR
Category - LD Protected Screw Take-Up Frame
Frame Size x Travel - LD-40x18
Description - LD-40x18-TUFR
Weight (lbs) - 28

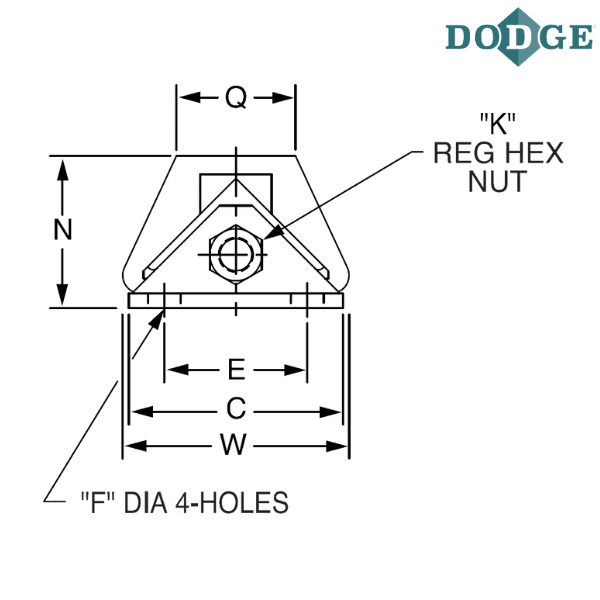

Overall Length (B) inch - 34.25
C (inch) - 4.75
Bolt Center-to-Center Length of F-Bolt (D) inch - 32.5
Bolt Center-to-Center Width (E) inch - 3
F-Bolt Diameter (inch) - 0.625
H (inch) - 0.3125
J (inch) - 1.75
K (inch) - 0.5625
L (inch) - 7.25
Overall Height (N) inch - 3.1875
O (inch) - 2.25
P (inch) - 9.75
Q (inch) - 2.5
R (inch) - 9.25
S Screw Diameter (inch) - 0.75
W (inch) - 4.75
X (inch) - 1.0625
Maximum Bolt to Bolt Distance of Z-Bolt (Y max) inch - 7.875
Minimum Bolt to Bolt Distance of Z-Bolt (Y min) inch - 6.375
Z-Bolt Dianeter (inch) - 5/8 x 3
Angle - 2-1/2 x 2-1/2 x 5/16

Notes :
LD - Light Duty Protected Screw Take-Up Frame
40 - Frame Size Designation
18 - Inches of Travel
TUFR - Take-Up Frame

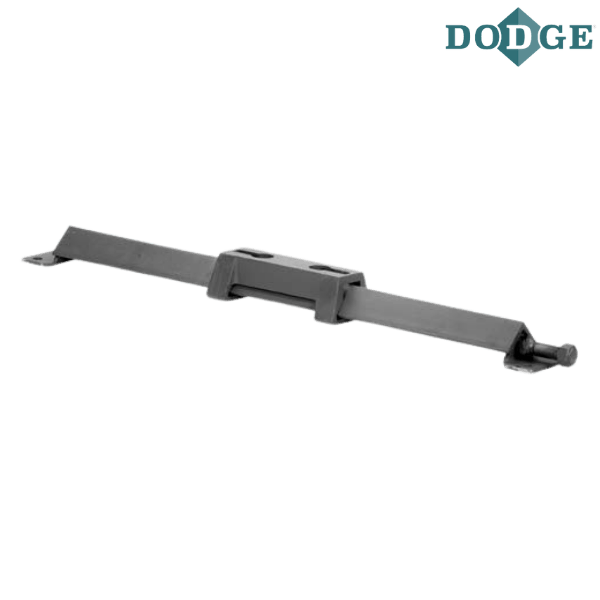

** Images are for representation purposes only
