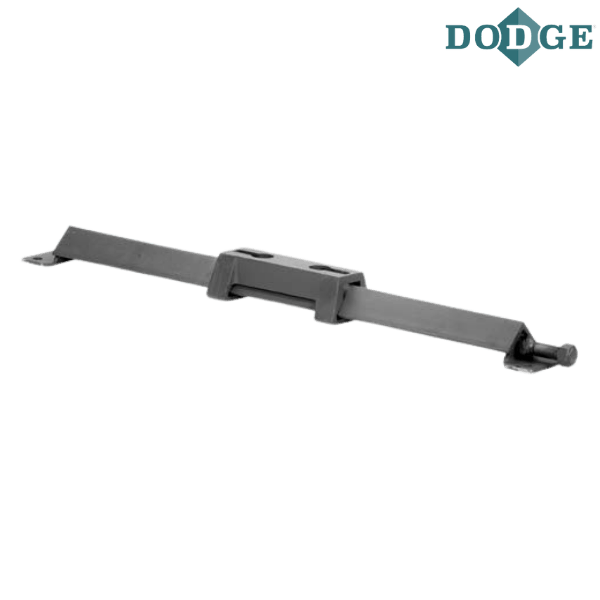

039008 DODGE - LD-20x9-TUFR


Country Of Origin: USA
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - DODGE
Item Number - 039008 DODGE - LD-20x9-TUFR
Category - LD Protected Screw Take-Up Frame

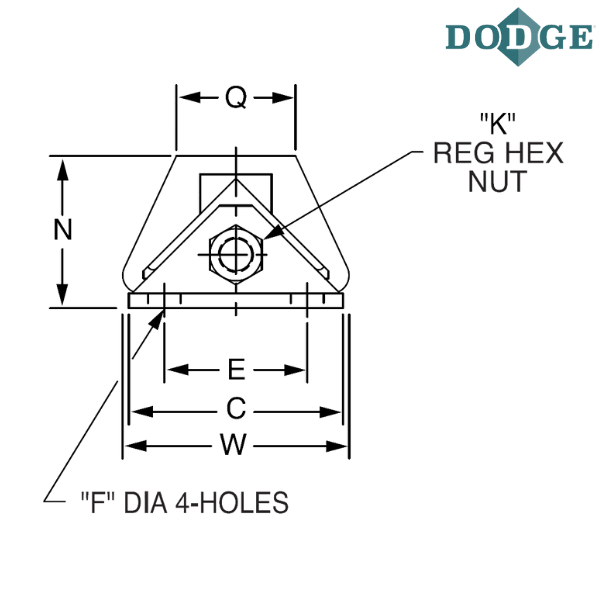

Frame Size x Travel - LD-20x9
Description - LD-20x9-TUFR
Weight (lbs) - 13
Overall Length (B) inch - 22
C (inch) - 3.75
Bolt Center-to-Center Length of F-Bolt (D) inch - 20.5
Bolt Center-to-Center Width (E) inch - 2.5
F-Bolt Diameter (inch) - 0.5
H (inch) - 0.25
J (inch) - 1.75
K (inch) - 0.5625
L (inch) - 5.75
Overall Height (N) inch - 2.59375
O (inch) - 2.125
P (inch) - 7.75
Q (inch) - 2.125
R (inch) - 7.25
S Screw Diameter (inch) - 0.75
W (inch) - 3.75
X (inch) - 0.9375
Maximum Bolt to Bolt Distance of Z-Bolt (Y max) inch - 6.25
Minimum Bolt to Bolt Distance of Z-Bolt (Y min) inch - 4.4375
Z-Bolt Dianeter (inch) - 1/2 x 2-1/2
Angle - 2 x 2 x 1/4

Notes :
LD - Light Duty Protected Screw Take-Up Frame
20 - Frame Size Designation
9 - Inches of Travel
TUFR - Take-Up Frame
