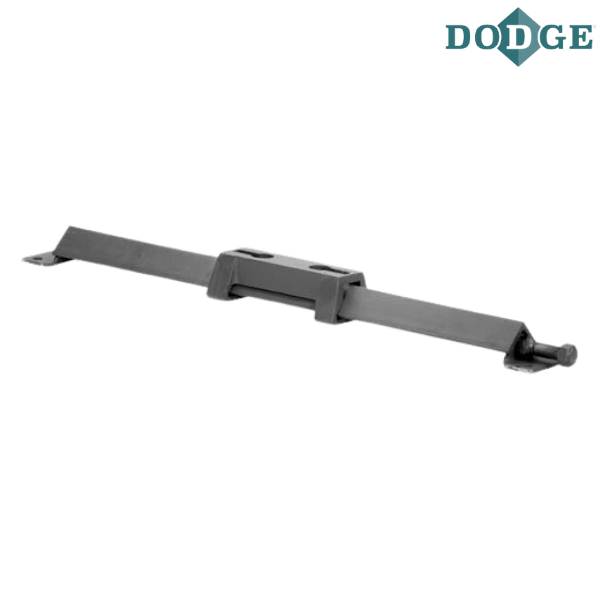

038926 DODGE - LD-45x36-TUFR


Country Of Origin: USA
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - DODGE
Item Number - 038926 DODGE - LD-45x36-TUFR
Category - LD Protected Screw Take-Up Frame
Frame Size x Travel - LD-45x36
Description - LD-45x36-TUFR
Weight (lbs) - 70

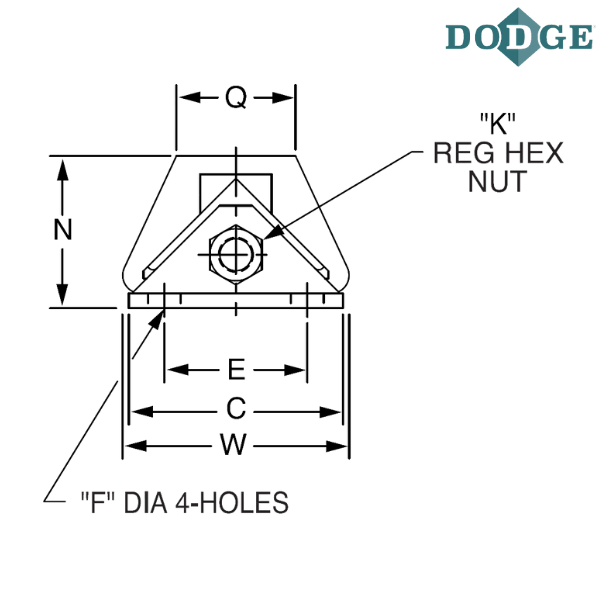

Overall Length (B) inch - 57.25
C (inch) - 5
Bolt Center-to-Center Length of F-Bolt (D) inch - 55.5
Bolt Center-to-Center Width (E) inch - 3
F-Bolt Diameter (inch) - 0.75
H (inch) - 0.3125
J (inch) - 1.5625
K (inch) - 0.6875
L (inch) - 9.75
Overall Height (N) inch - 4.125
O (inch) - 2.5
P (inch) - 13.5
Q (inch) - 3.5
R (inch) - 13
S Screw Diameter (inch) - 1
W (inch) - 5.875
X (inch) - 1.25
Maximum Bolt to Bolt Distance of Z-Bolt (Y max) inch - 11.25
Minimum Bolt to Bolt Distance of Z-Bolt (Y min) inch - 7.25
Z-Bolt Dianeter (inch) - 3/4 x 3-1/2
Angle - 3 x 3 x 1/2

Notes :
LD - Light Duty Protected Screw Take-Up Frame
45 - Frame Size Designation
36 - Inches of Travel
TUFR - Take-Up Frame

** Images are for representation purposes only
